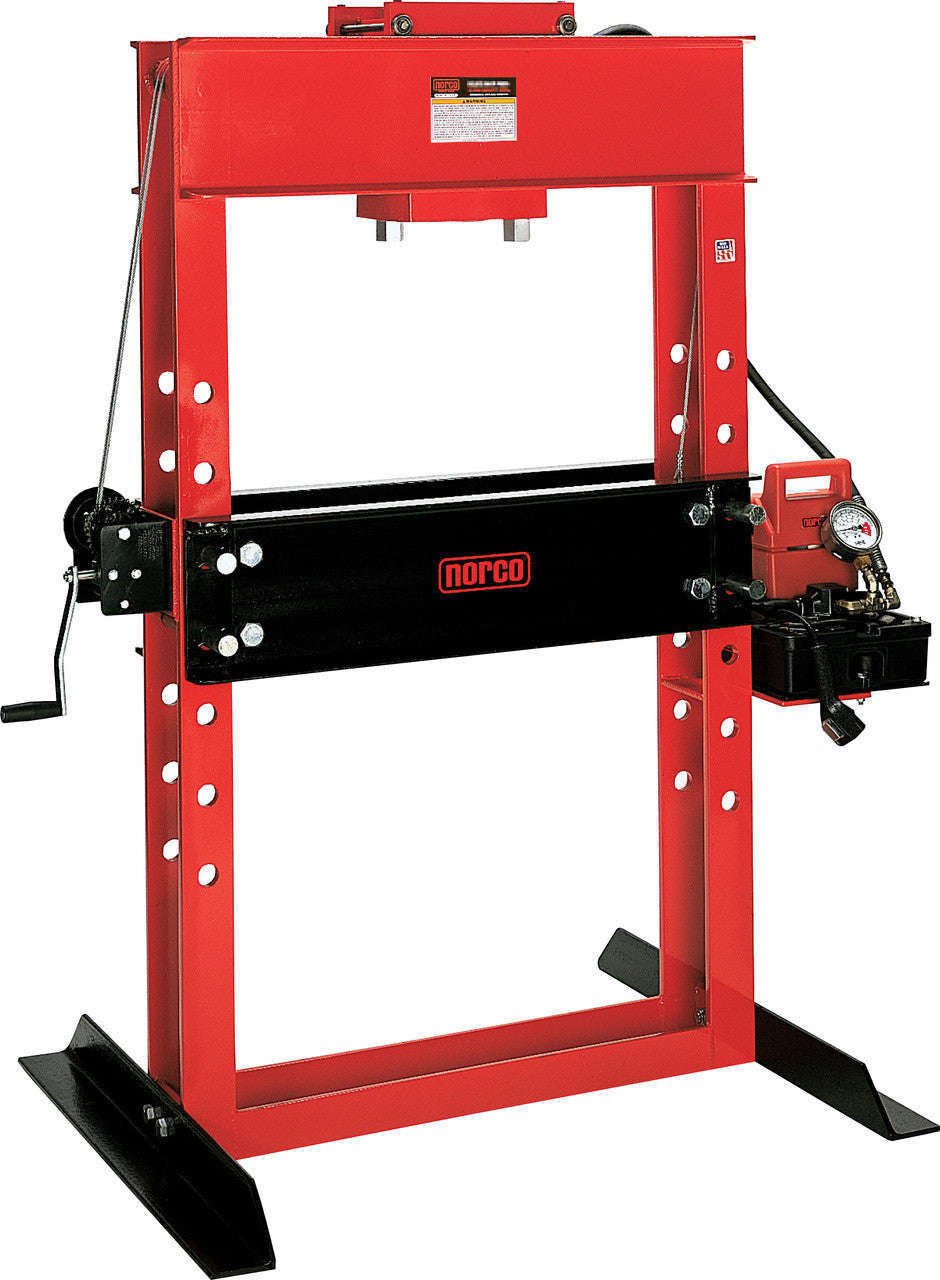

Norco 78058A Electro Hydraulic 50 Ton Shop Press

Heavy duty use in truck garages and industrial work shops. Equipped with model 910052A electro/hydraulic foot pump and model 910036A 10’ hose.

Features:

• Welded frame, fully assembled, tested, and ready to put to work.
• Equipped with high speed electro/hydraulic foot pump.
• Safety overload system protects power unit.
• Hand operated winch raises and lowers press bed.
• Liquid filled gauge measures ram force in pounds and tons.
• Self-retracting ram is bearing mounted for lateral movement on head channel.

Dimensions:

• Ram Travel | 6.25"
• Min. Throat Height | 7.5"
• Max. Throat Height | 32.625"
• Throat Width | 34.5"
• Bed Height Adj. | 7 x 5"
• Between Uprights | 5.625"
• Between Bed Rails | 7.375"
• Base Width | 50"
• Base Depth | 40"
• Overall Height | 72.75"
• Shipping Weight | 814 lbs.

This Norco shop press ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Click Links Below for Additional 78058A Information:

• 78058A Operations Manual
• 78058A Exploded Drawing
• 78058A Sale Sheet

ARBOR PLATES NOT INCLUDED
