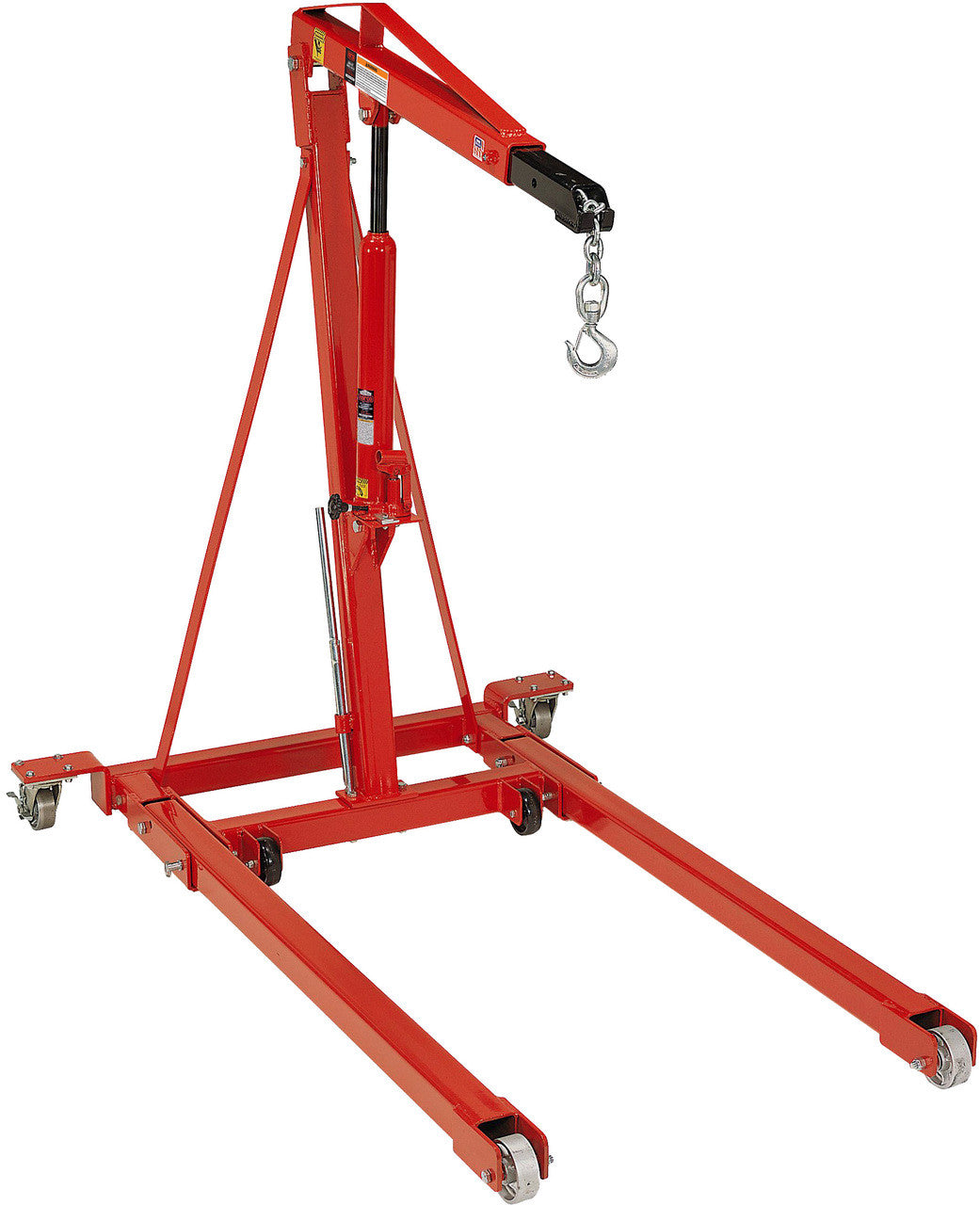

Norco 78106A 2,500 Lbs. Capacity Folding Engine Crane

Designed to raise, lower and transport automobile engines, transmissions, differentials and other heavy loads with minimal effort.

Features:

• Four position telescopic boom with 3/8” proof chain and hook.
• 3 ton capacity hydraulic power unit provides faster raising action and a large diameter ram to withstand angle loads.
• Low profile design (4-3/4” from top of legs to ground) allows positioning under low ground clearance vehicles.
• Quick foldable legs and boom save shop space (22-1/2” x 51-3/4”) and prepare crane for transport or storage within seconds.
• 4” diameter front wheels and locking rear caster wheels provide positive steering and easy maneuvering. Locking caster wheels secure crane from moving when in use.

Dimensions:

• Min. Boom Height | 0"
• Max. Boom Height | 88"
• Length | 74.5"
• Width | 51.75"
• Height | 70.75"
• Shipping Weight | 320 lbs.

Optional Equipment:

• Engine Load Leveler

Click Links Below For Additional 78106A Information:

• 78106A Operations Manual
• 78106A Exploded Drawing
• 78106A Sell Sheet

IMPORTANT PLEASE NOTE:

• This Norco floor crane ships by truck and extra shipping charges will apply to ship to a non-commercial address.
