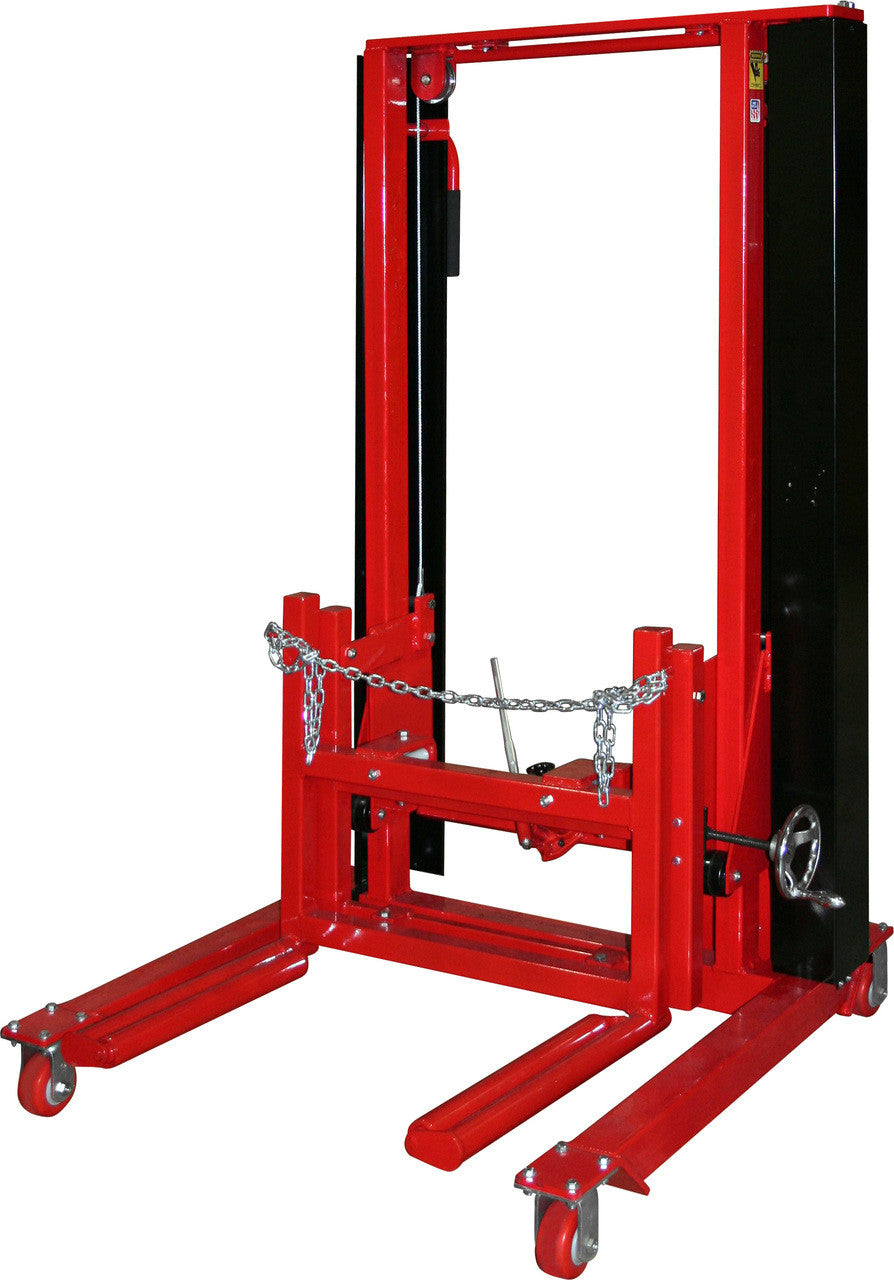

Norco 82304 1/2 Ton Capacity Air/Hydraulic High Lift Wheel Dolly

The Norco 82304 is a uniquely crafted wheel lift that is designed for the removal and installation of single, tandem, and duplex tires and wheels which are mounted on trucks that are supported above ground level.

Features:

• The unique, open-chassis design allows for much easier alignment than with the center post designs of our competition.
• Air-operated pump allows the unit to lift the load effortlessly.
• Heavy duty lift arms made with ball bearing conveyor rollers which allow easy rotation of wheels for alignment with bolt pattern.
• 39 1/2” lift range.
• 7” of side to side lift arm adjustment allows for the easy alignment of the rim’s lug holes with the wheel.
• 1,000 pound capacity.
• A hydraulic jack provides tilt to the lift arms for easy alignment.
• Safety chain provided to secure tires and wheels to the dolly.
• Maneuverability is made easy by means of two rear mounted ball bearing swivel casters. The caster wheels include a locking mechanism which can prevent the dolly from moving.

Specifications:

• Lift Height
• Low 2.125"
• High 39.5"
• Lift Arms
• Width 30.875"
• Length 22.125"
• Tilt Angle -2° to +30°
• Side to Side Adj.
• Left 2.5"
• Right 4.5"
• Overall Dimensions
• Length 49.625"
• Width 44.625"
• Height 69.875"
• Shipping Weight 476 lbs.

Click Links Below for Additional 82304 Information:

• 82304 Operations Manual
• 82304 Exploded Drawing
• 82304 Sell Sheet

PLEASE NOTE IMPORTANT INFORMATION:

• This Norco wheel dolly ships by truck and extra shipping charges will apply to ship to a non-commercial address.
