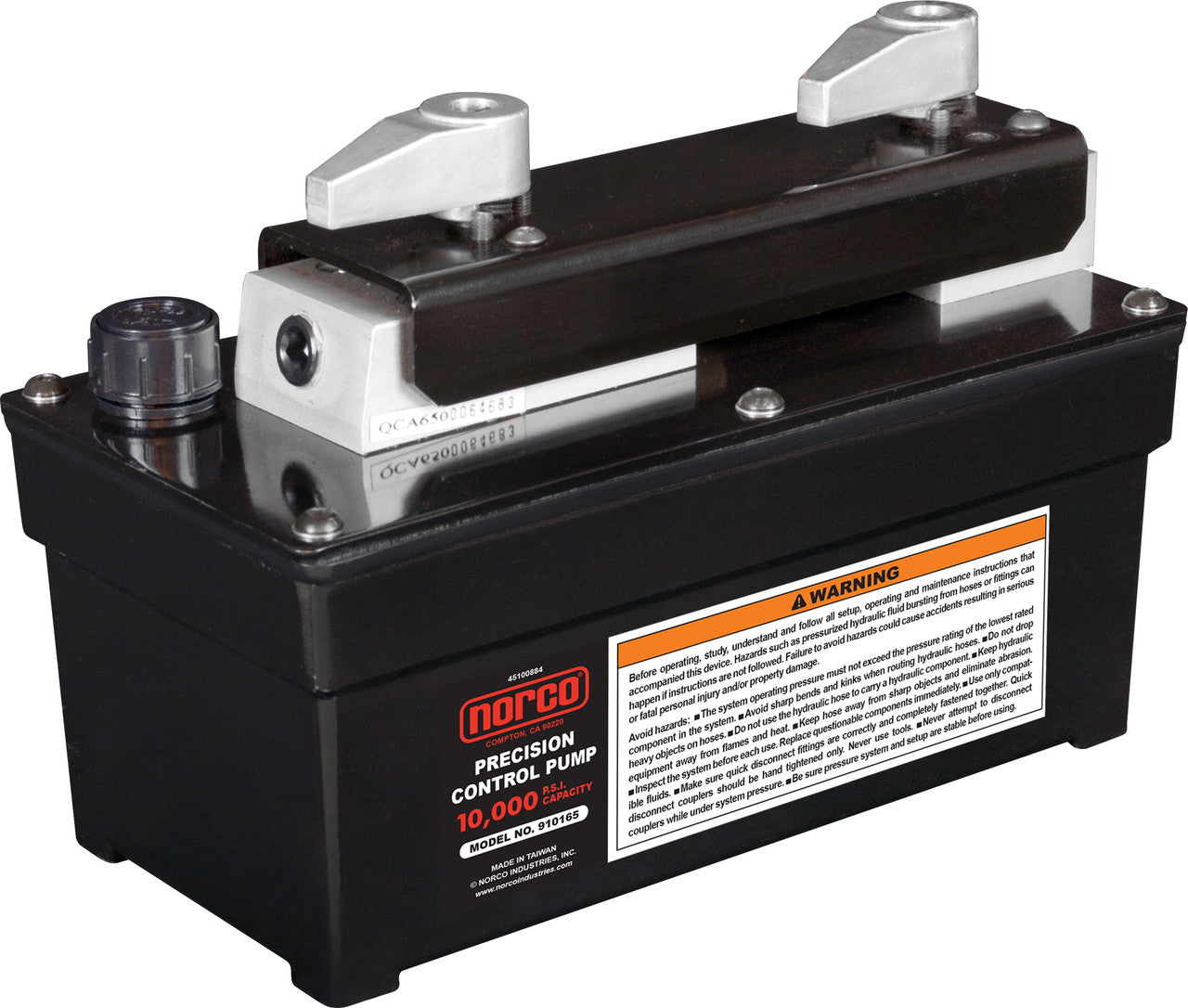

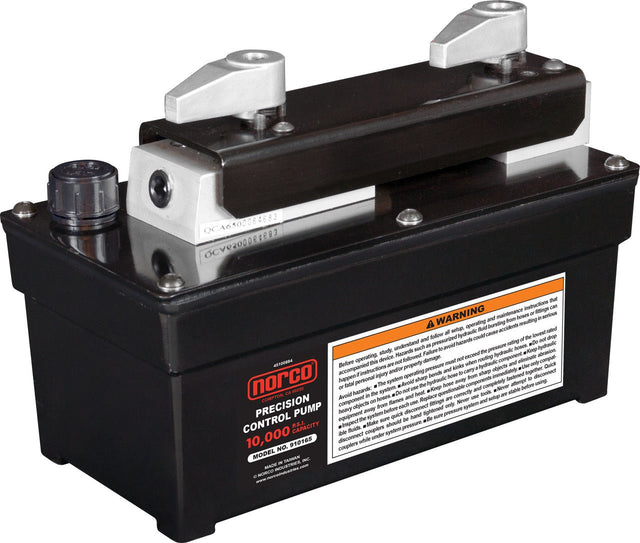

NorcoIndustries 910165 10,000 P.S.I. Air / Hydraulic Hand Operated Pump - Without Gauge

Intended for automotive / truck, industrial & construction jobs. The added convenience of an air motor reduces pumping time and effort to activate cylinders.

Features:

• Fingertip control for both pressure and release operations provides finer control of raising or lowering loads.
• Designed to utilize exhaust air to help power the pump, requiring only 90 p.s.i. air pressure to develop 10,000 p.s.i. hydraulic pressure.
• Air exhaust muffler for quieter operation.
• Air and oil inlet filters for reduced risk of damage from contamination.
• Designed with durable light weight, corrosion resistant plastics.
• Designed to be used with a single-acting cylinder.
• Internal pressure relief valve for overload protection.

Specifications:

• Hydraulic Pressure Rating (PSI) | 10,000
• Usable Oil Capacity (cu. in) | 97
• Output Flow Rate (Cu. In. Per Min.) |
• No Load 80.5
• Load 12.8
• Air Pressure Range (PSI) | 40-170
• Air Consumption (scfm) | 24
• Valve Function | Advance/Hold Retract
• Sounds Level (dBA) | 85
• Thread Connections |
• Air (NPT) .25"-18
• Hydraulic (NPT) .375"-18
• Dimensions | 10.25"l x 5.125"w x 7"h
• Weight | 17 lbs
