OTC 4008 Two-Stage Hand Pump

OTC's finest hand-operated power units! These fast-acting, two-stage pumps not only handle high force, high pressure requirements up to 10,000 PSI, but deliver extremely high volume at low pressure (7.35 cu. in. per stroke from 0 to 200 PSI) to quickly move the ram piston to and from the work! Pumps have a built-in relief valve, pre-set at the factory for 10,000 PSI. Maximum handle effort is 90 lbs.

Specifications:

Pump Number: 4008
Maximum Pressure:
1st Stage: 200 PSI
2nd Stage: 10,000 PSI
Piston Diameter:
1st Stage: 2½"
2nd Stage: ½"
Reservoir Capacity: 460 cu. in. usable
Oil Port: 3/8" NPTF

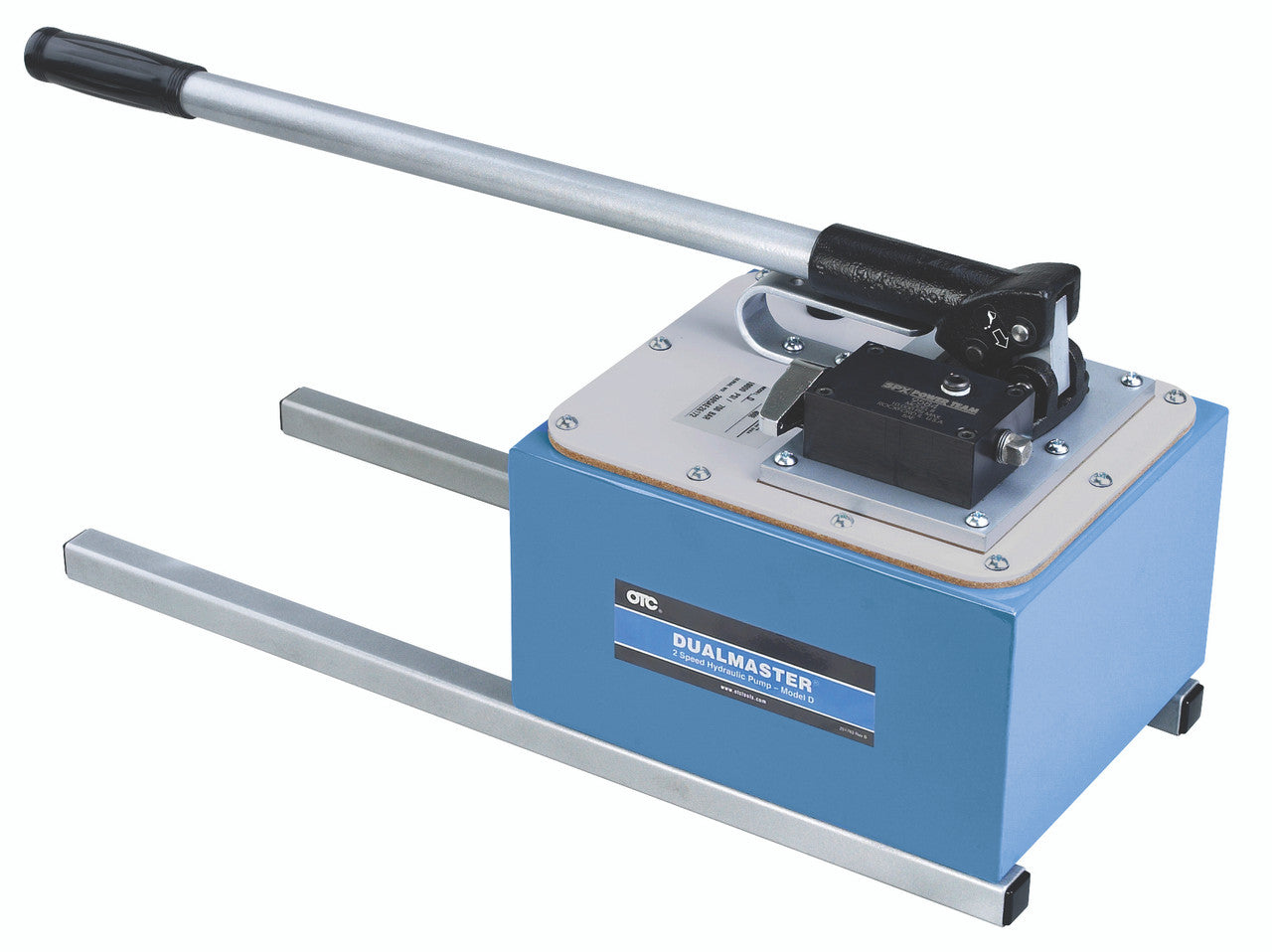

No. 4008 – Hydraulic hand pump with No. 9584 2-position, 3-way control valve (for operating single-acting rams), and No. 4006 BL2 2-gallon reservoir with legs. Wt., 50 lbs.
