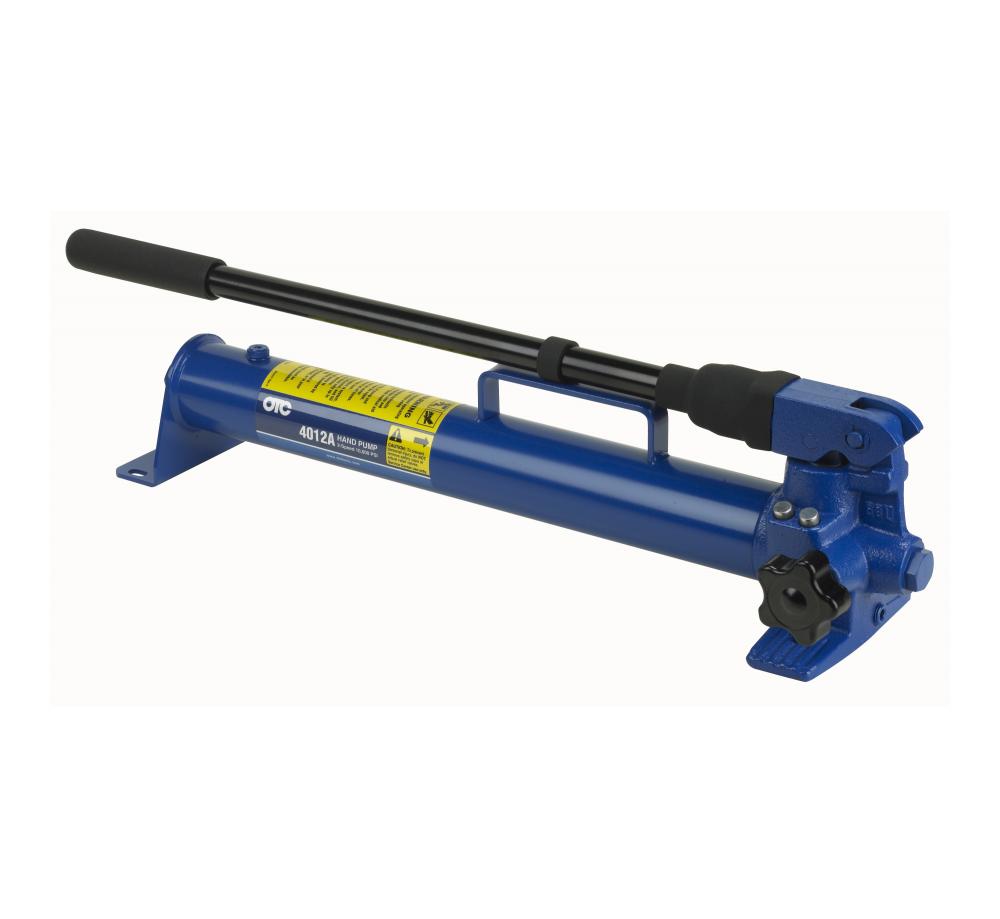

OTC 4012A Two-Speed Hand Pump

Two 4012A two-speed hand pump's all-metal construction almost eliminates the chance of leaking, or damage to the pump from regular use or accidents. It's the perfect pump for use with single-acting rams or combinations where 45 cu. in. of usable oil capacity will do the job. Has 2-way valve; welded steel carrying handle; automatic switching from low to high pressure mode; handle effort under 140 lbs. at 10,000 PSI; unique fill cap to prevent over-filling and over-pressurization; non-vented reservoir; fingertip control valve with 180 degrees throw for on/off control. In other words, this pump has it all!

Specifications:

Maximum Pressure:
1st - 325 PSI
2nd - 10,000 PSI
Volume Per Stroke:
1st - .662 cu. in.
2nd - .160 cu. in.
Piston Diameter: 3.8"
Piston Stroke: 13/16"
Reservoir Capacity: 55 cu. in. (45 cu. in. usable)
Oil Port: 3/8" NPTF
No. 4012 – Hand pump only. Has 55 cu. in. reservoir. Wt., 18 lbs., 6 oz.
