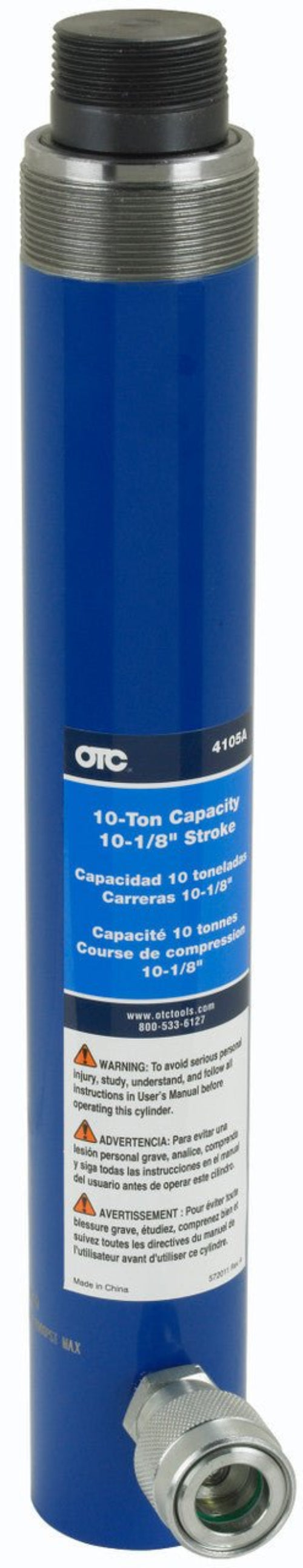

OTC 4105A 10 Ton Ram

~~~Specs may be subject to change as OTC does not have them available.~~~

This model is to replace the OTC 4105 with same stroke.

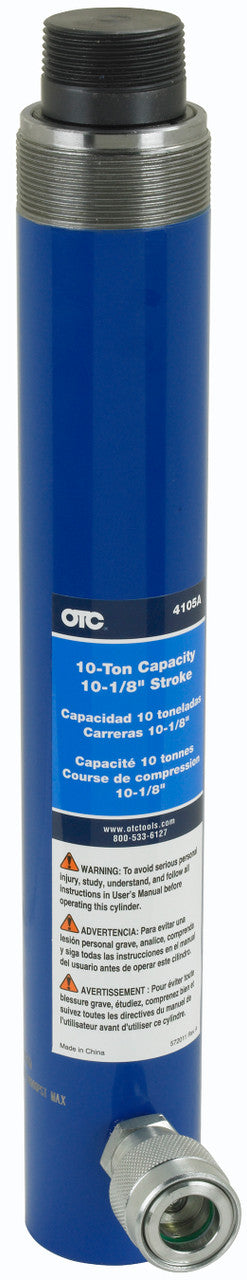

Image above is of the 4105 and not the 4105A.

10-Ton Single-Acting, Spring-Return Ram, 10-1/8" Stroke

OTC's design ensures positive, leak-resistant sealing throughout all pressure ranges, yet full piston return characteristics are maintained. Additional bearing surface has been designed into these units to effectively resist the punishing stress exerted by off-center loads. Depending on capacity, this ram can handle a variety of bending and straightening jobs, construction maintenance applications, pressing operations, body and frame straightening, and rear housing and axle correction.

Specifications:

• Capacity in Tons | 10
• Stroke | 10-1/8"
• Oil Capacity (cu. in.) | 22.9
• Effective Ram Area (sq. in.) | 2.236
• Tons at 10,000 PSI | 11.2
• Spring Return | Yes
• Height Collapsed | 15 1/2"
• Height Extended | 25 7/8"
• Piston Protrusion at Collapsed Height | 1 1/16"
• Diameter | 2 1/4"
• Diameter | 1 5/8"
• Piston Thread (N.P.T.) | 1 1/4"
• Collar Thread (Straight) | 2 1/4"-14
• Internal Base Thread (N.P.S.M.) | 1 1/4"-11 1/2
