OTC 4247-FR Suspension Bushing Kit w/Pump

This heavy-duty suspension bushing tool replaces worn-out, rusted, and frozen double-wrap spring bushings faster and easier without heat or damage by providing a 25-ton capacity. The tool can be assembled on the spring and bushing without removing the assembly from the vehicle, dramatically reducing service time and not requiring the use of a shop press. Patent-pending design allows for unassisted assembly of the tool onto the spring, eliminating the need to hold any weight of the tool during operation. The press plates and adapters are easily installed which perfectly align the bushing to reduce the chance of misalignment and bushing damage during removal or installation.

The tool and adapters included in this kit allow for service of the following applications:

• Hendrickson rear suspensions including: Primaax EX, Comfort Air and FCCC V-Ride (TM) Pivot and D-Pin suspension bushings.
• Freightliner rear suspensions including: Double and single-wrapped FAS II Airliner rear suspension bushings.

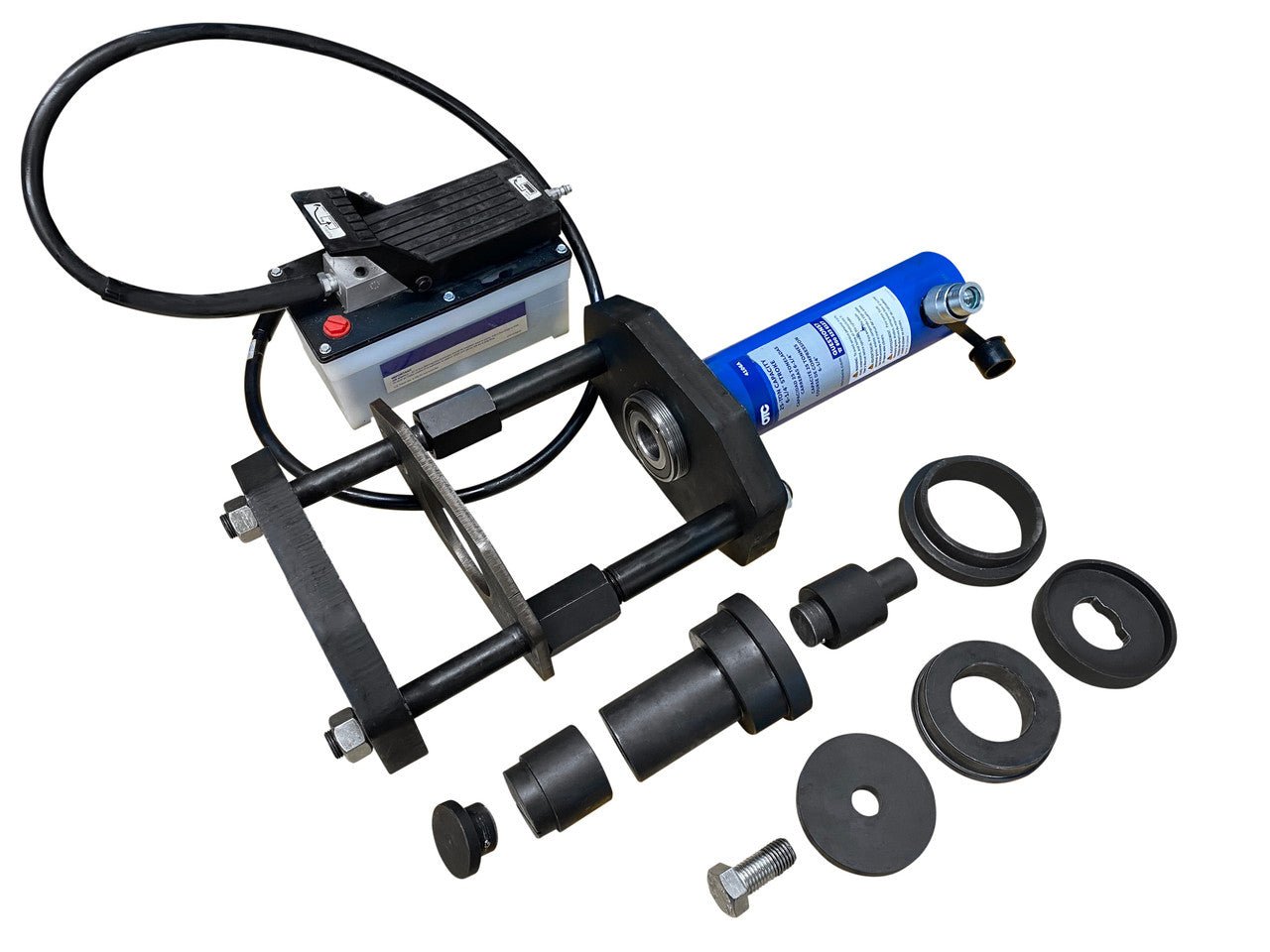

Kit Includes:

• Air/Hydraulic Pump
• Hydraulic Hose
• 25 Ton Hydraulic Cylinder
• Cylinder Mounting Plate
• Mounting Plate Studs (2X)
• Clamping Plate, Thin
• Clamping Plate, Thick
• Clamping Nuts (2X)
• Hex Nuts (4X)
• Cylinder Saddle
• Cylinder Adapter Pin
• D-Pin Adapter
• Bushing Support
• Bushing Support, Small
• Alignment Adapter
• Bushing Alignment Adapter
• Plate
• Hex Bolt
• Instruction Booklet

Specifications:

• Product Dimensions | 34" × 24.25" × 9.5"
• Shipping Weight | 30 lb
