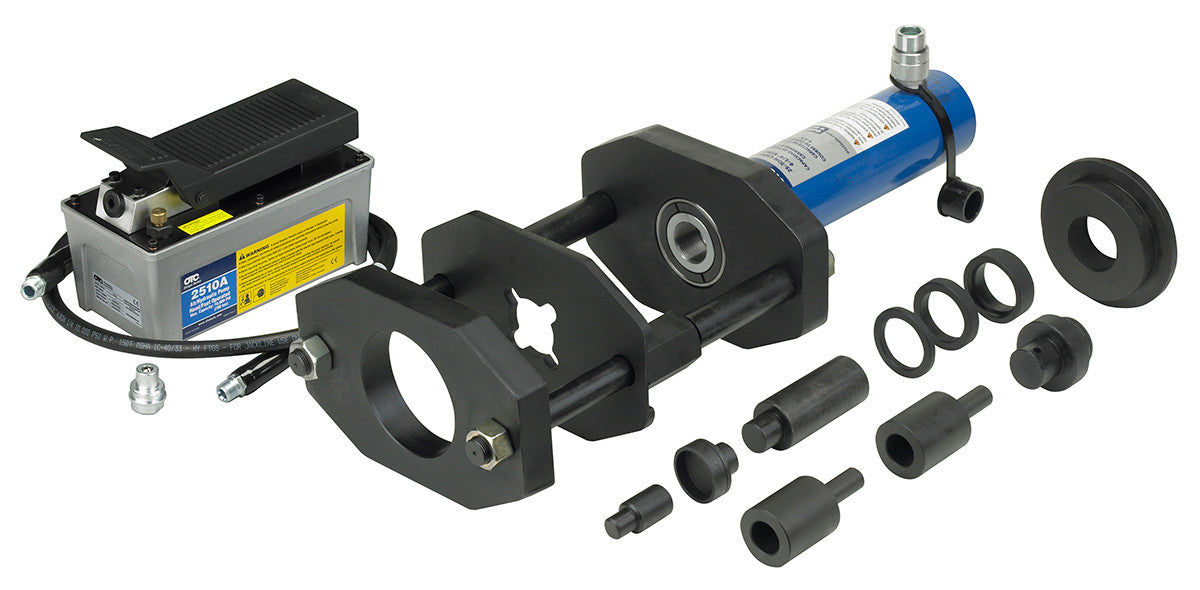

OTC 4275 Hendrickson Front Suspension Bushing Master Tool Set

Set Includes:

• Truck Suspension Head
• Alignment Tool (x2)
• Clamping Plate
• Bushing Support Adapter
• Threaded Rod (x2)
• Threaded Rod Connection (x2)
• Cylinder Mounting Plate
• Hydraulic Cylinder, 25 Ton
• Extension
• Cylinder Adapter
• Alignment Pin
• Bushing Adapter
• Spacer A
• Spacer B
• Spacer C
• Plastic Box
• Foam Pad (x2)
• Hex Nut (x4)
• Operating Instructions / Parts List
• Warranty Sheet / Service Center List
• Hydraulic Hose
• Hose Half Coupler
• Air/Hydraulic Pump

Features:

• Patented Design allows tool to be mounted to suspension instead of needing to be held by technician during bushing service
• Specially designed pushing adapters mate up exactly with Hendrickson PACCAR Monoleaf, Navistar Monoleaf, Volvo Monoleaf front suspension D-Pin bushings
• Centering adapters align tool with suspension reducing likelihood of bushing damage
• Significantly reduces operation time for bushing removal and installation
• Included OTC 2510A air/hydraulic pump makes bushing removal and installation quick and easy

Specifications:

• Pump Pressure | 10,000 psi
• Pump Capacity (useable) | 98 cu. in.
• Product Dimensions | 27.125" x 6.5" x 10.25"
• Product Weight | 128.18 lbs
• Shipping Weight | 134 lbs
