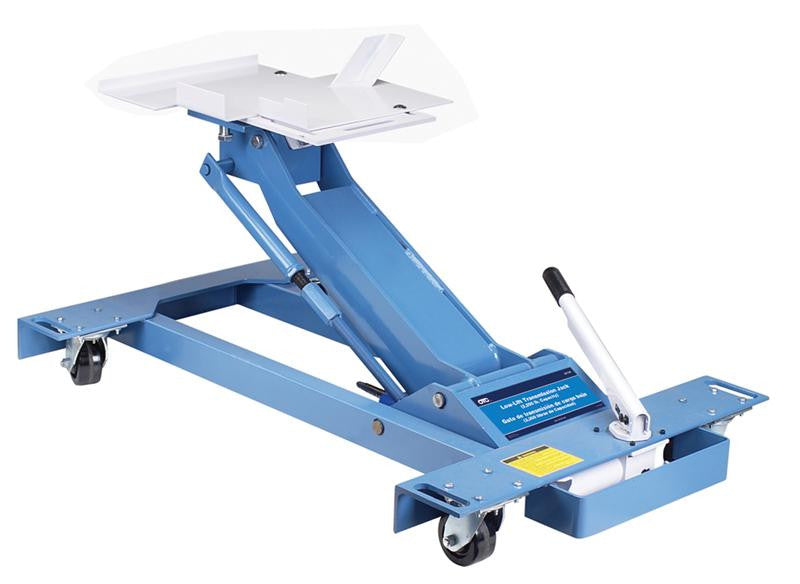

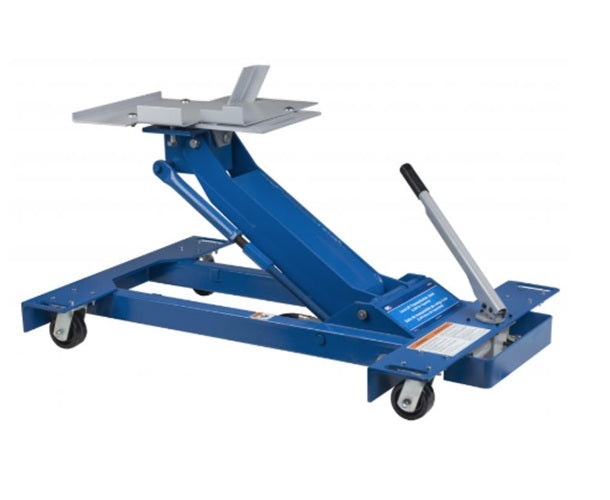

OTC 5019A 2,200 LB. Capacity Low-Lift Transmission Jack |  Includes 540231 Eaton Fuller RoadRanger Transmission Adpater

Features:

• The 8-1/4" low height is perfect for aerodynamic trucks with low ground clearance.
• Special mounting adapter (No. 540231) fits popular Eaton Fuller RoadRanger transmissions used on nearly all Class 7 and 8 heavy-duty trucks.
• Mounting plate angle is adjusted with the turn of a wrench.
• Degree of tilt: 20° back, 15° forward, 12° side to side.
• Swiveling pump handle permits ease of operation in restricted working spaces.
• Fast-acting pump quickly raises lifting arm.

Specifications:

• Minimum Height | 8-1/4"
• Maximum Height | 36-1/2"
• Maximum Forward Tilt | 15 degrees
• Maximum Backward Tilt | 20 degrees
• Maximum Side Tilt (either side) | 12 degrees
• Overall Length | 52"
• Overall Width | 32-1/2"
• Product Dimensions | 55.6 × 35.6 × 14.5 in
• Shipping Weight | 376 lbs

Optional Adapters:

• 5091 | HD Spindle Adapter
• 528150 | Eaton "Lightning" Adapter
• 540232 | Mack Transmission Mounting Brackets. Provides a stable platform for Mack T200 Series Transmissions
• 543284 | RoadRanger transmission Model series FRO-11210C to FRO-1821OC that is equipped with an internal cooler
• 553516 | Differential Mounting Adapter. Mounts easily using existing bolt patterns.
