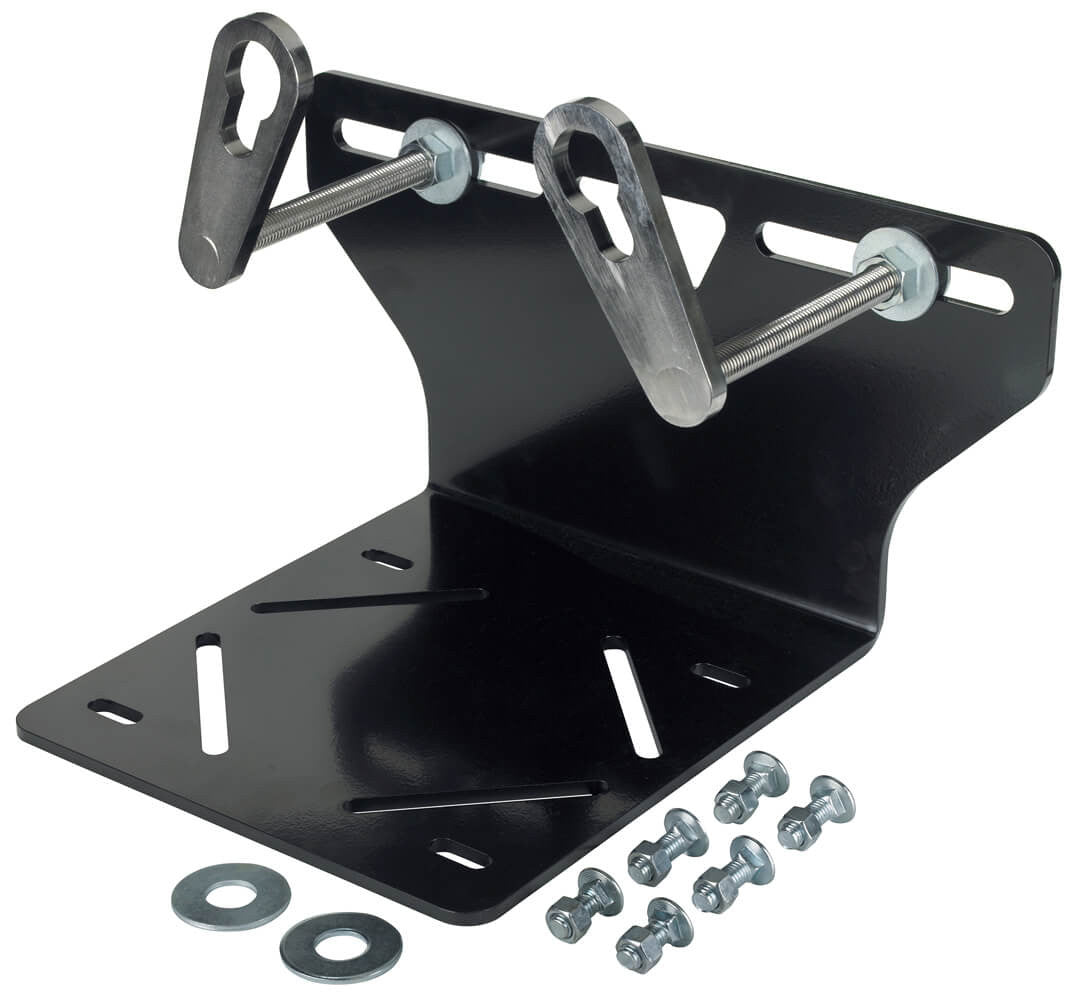

OTC 5091 HD Spindle Adapter

This low-lift transmission jack adapter holds the spindle assembly firmly in place during king pin service. It eliminates the need to completely disassemble the brakes to reduce spindle weight for handling. During service, the spindle assembly can be raised to a comfortable working height while replacing king pin bearings or bushings. Our patented design will work with standard HD truck bolt patterns and wheel stud sizes and adapts to most low-lift transmission jacks.

Use with OTC 4240A Kingpin pusher to remove Kingpins in minutes with up to 30 tons of force.

Features:

• Adapter for low lift transmission jacks that holds the spindle assembly firmly in place during king pin service.
• Eliminates the need to completely disassemble the brakes to reduce spindle weight for handling.
• Spindle assembly can be raised to a comfortable working height while replacing king pin bearings or bushings.
• Patented design will work with standard HD truck bolt patterns and wheel stud sizes.
• Adapts to most low lift trans jacks.

For Use With:

• 1522A | 2,000-lb capacity low-lift transmission jack
• 5019A | 2,200-lb capacity low-lift transmission jack
• 5130 | 1,000-lb capacity Drivemaster driveline lift
• Most other low-lift transmission jacks

Specifications:

• Dimensions | 27.1 × 18.65 × 11.78 in
• Weight | 35.2 lb
