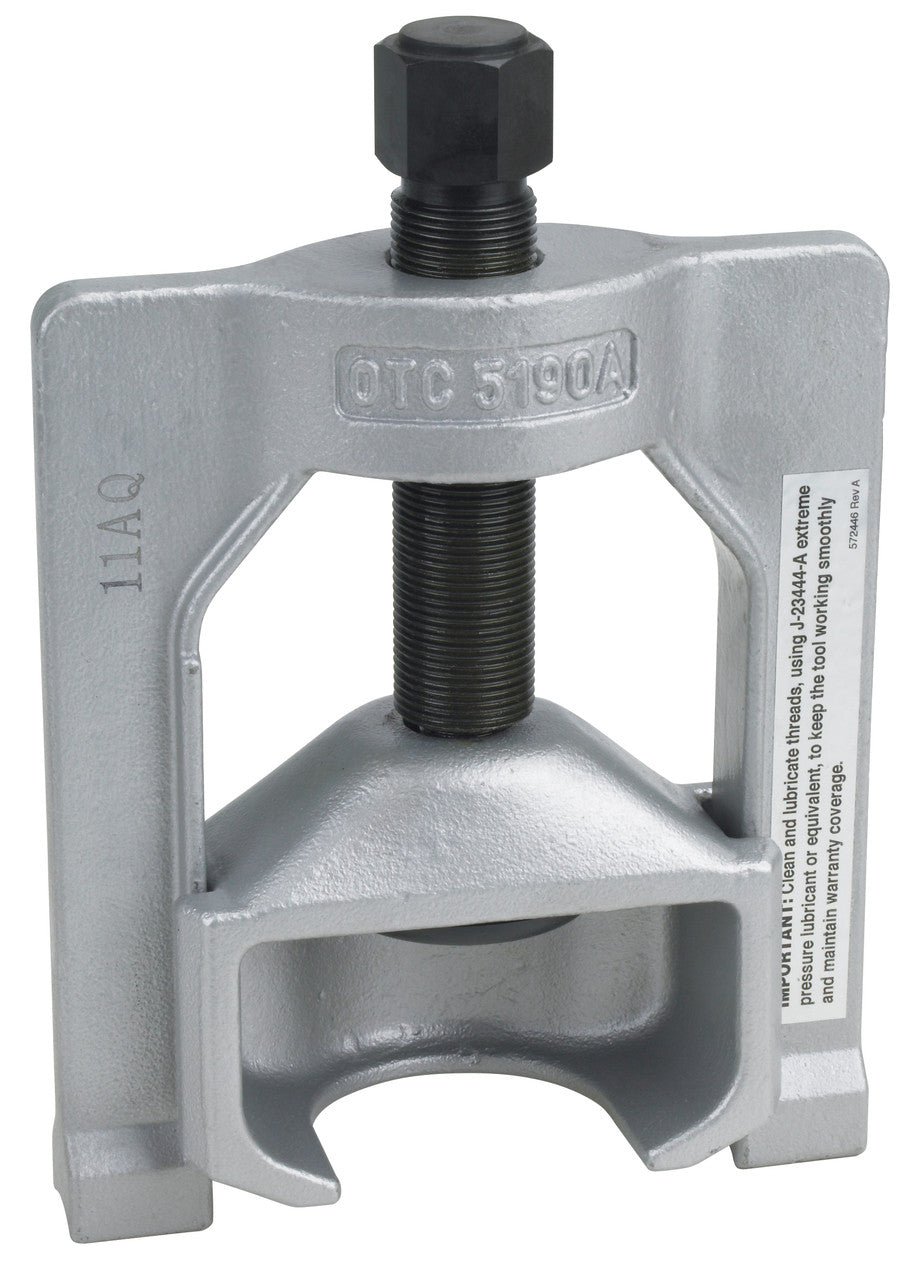

OTC Heavy-Duty U-Joint Puller

The OTC 5190A heavy-duty U-Joint Puller replaces the former 5190. This heavy duty tool is used to remove the HD vehicle driveline U-joints using an impact wrench up to 1-inch as well as disassemble and reassemble U-joint cups without heat or hammering. This puller is equipped with a smoother thread that allows for a lower and more consistent effort to rotate shaft as well as a larger diameter threaded shaft.

Features:

• Larger diameter threaded shaft can handle U-joints that are severely seized and require higher force to pull and install.
• Major tool components are heat treated for improved strength and durability.
• Smoother thread allows for a lower, more consistent effort to rotate shaft.
• Designed to fit all Class 7 and 8 trucks, including a wide variety of drivelines from Spicer and Meritor, making shop operations more efficient and reducing cost.

Compatible with:

• Spicer 1610, 1710, 1760, 1810, 1880
• Spicer SPL 140, 170, 250 Life Series
• Meritor 16N, 17N, 18N, 1710, RPL 20, and 25 Permalube Series

Specifications:

• Product Dimensions: 3 × 7 × 12.5 in
• Product Weight: 11.4 lb

Click Here to view a comparable item, the Tiger Tool 10102.
