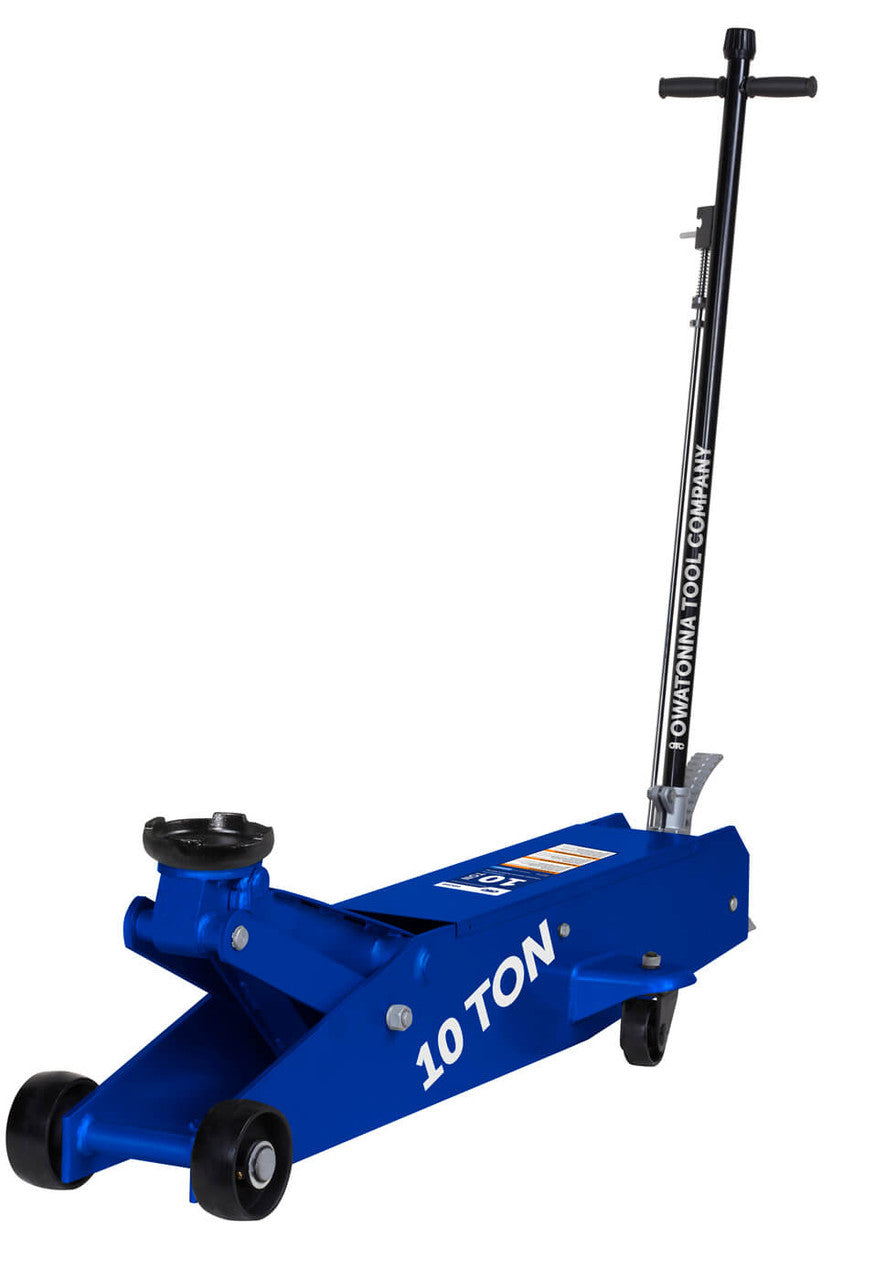

OTC HDJ10 10 Ton Service Jack

The OTC 10-ton service jack has built-in safety overload to prevent over utilization beyond the jack's rated capacity. This 10-ton floor jack also features a convenient foot pedal to speed the lifting operation. Handle lock and release control are located on top of the handle. Spring-loaded 43-1/4" handle can be locked into any position from vertical to horizontal. Cycle tested design for a long life of professional duty.

Ideal size for vocational vehicles, bucket trucks, school buses and larger vehicles.

Includes:

• HDJ10 10 Ton Service Jack
• 1 Piece Handle with spring locking mechanism
• OTC Owners Manual for Service Jacks

Features:

• Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminants
• Convenient foot pedal for no load lifts
• Front wheels with roller bearings and ball bearing mounted rear caster wheels provide stability and easy maneuverability
• Overload and bypass safety valves prevent use beyong jacks rated capacity and over extension of the ram
• Handle can be locked into one of three positions from vertical to horizontal and has independent release knob
• OTC Owner's Manual for service jacks with training (operating) instructions

Specifications:

• Capacity | 10 Ton
• Lifting range | 6.3" to 22"
• Reach | 51"
• Saddle | 6" dia., round
• Frame height | 9.8"
• Handle length | 43.25" 3-position with lock and release controls
• Floor space | 18" x 60"
• Casters | 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)
• Dimensions | 60 × 18 × 9.75 in
• Weight | 285 lb
• Shipping Weight | 329 lb

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
