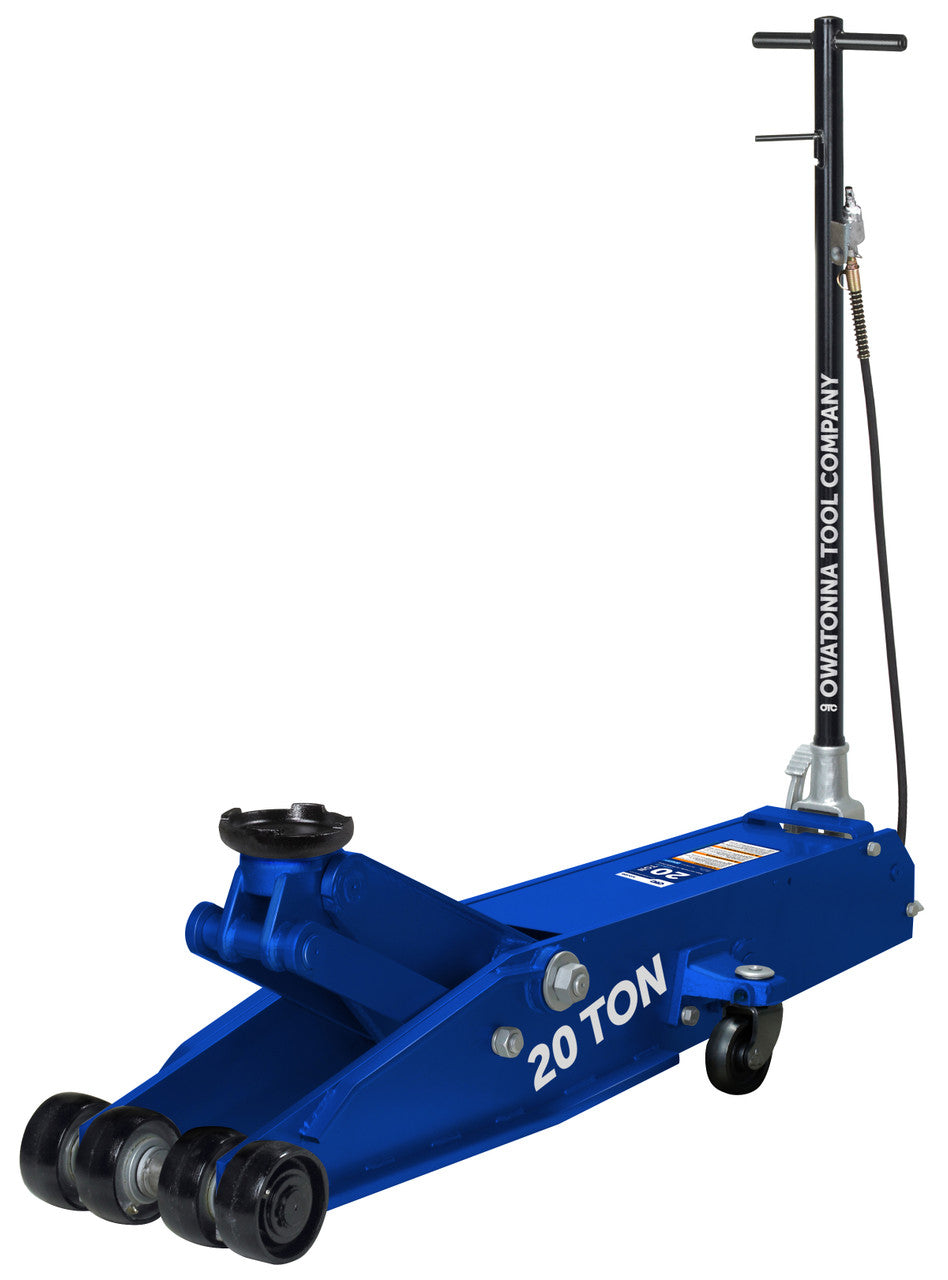

OTC HDJ20P 20 Ton Air/Hydraulic Service Jack

Bring the versatility of air-assist operation to your shop’s lifting tasks with the OTC HDJ20P. Rugged steel frame members ensure confident lifting service. Low-profile stance and extended height add to versatility. Huge metal wheels and swivel casters roll effortlessly on internal bearings, providing trouble-free service life. Air-assist, foot or jack handle pumping action.

Ideal size for safely lifting bucket trucks, school buses, city buses, garbage trucks and more.

Features:

• Heavy duty hydraulic service for garages, equipment dealers, commercial service and more.
• Welded hydraulic pump and cylinder construction provides increased strength and leak protection
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminants
• Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuvering
• Overload and bypass safety valves prevent use beyond rated capacity ad over extension of the ram
• Handle can be locked in three positions from horizontal to vertical and has independent release knob
• Uses shop air supply for lifting assistance
• OTC Owners Manual for service jacks with training (operating) instructions
• Meets all 5 ASME PASE-2019 safety standards for service jacks.
• Limited Lifetime Warranty

Specifications:

• Capacity | 20-ton
• Air Pressure | 80–120 PSI
• Lifting Range | 7-1/2" to 23.8"
• Reach | 110.4"
• Saddle | 6-1/2" dia., steel crown
• Frame Height | 10.2"
• Handle Length | 47-1/2", 3-position spring-assisted locking
• Footprint | 18-1/8" x 61-3/8"
• Casters | 6; 4 front fixed, 2 mid-body swivel
• Product Dimensions | 71.5" × 21.5" × 17"
• Product Weight | 631 lbs
• Shipping Weight | 650 lbs
