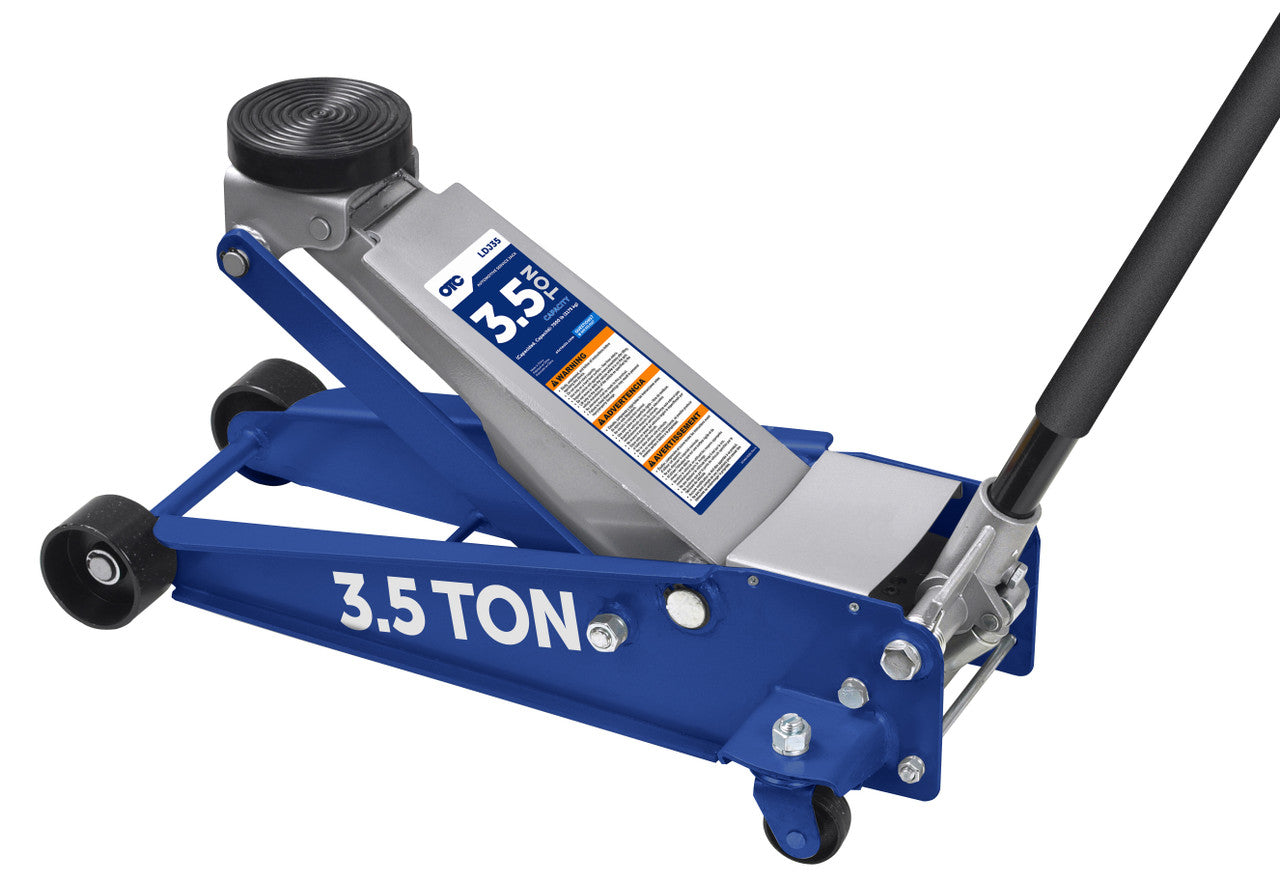

OTC LDJ35 3.5 Ton Service Jack

The LDJ35 is a 3-1/2-ton capacity service jack that is ideal for both a large automotive service center or a one-person shop. Under load, the dual-stage hydraulic unit can reach maximum height in 7 pumps. An extra wide lifting range increases the versatility for shops. A padded spring-loaded handle rapidly returns after each pump, allowing techs to lift the vehicle faster with less effort. Heavy-duty rolled edge construction adds strength and resists twisting for increased safety. Cycle tested design for a long life of professional duty.

Ideal size for full-size pickups, SUVs and loaded tradesmen vehicles.

Specifications:

• Lifting range | 5.2" to 21.9"
• Reach | 78.5"
• Saddle | 6" dia., flat steel, rubberized, pinned to lifting arm
• Frame Height 6.25"
• Handle Length | 50" spring-loaded padded lower handle
• Floor Space | 14.5" x 28.5"
• Casters | 4; 3.15" front fixed (2), 2.5" rear swivel (2)
• Meets all 5 ASME PASE-2019 safety standards for service jacks
• Limited Lifetime Warranty
• Product Dimensions | 28.5" × 14.5" × 6.25"
• Product Weight | 92 lbs
• Shipping Weight  | 99 lbs

Features:

• 3-1/2 ton lifting capacity
• Durable steel construction
• Dual pump design provides quick lift with maximum load
• Clear multi lingual safety and capacity markings
• Pad on handle protects vehicle finish
• Multi-Lingual Owners Manual with training (operating) inststructions
• OTC Limited Lifetime Warranty

Includes:

• 3-1/2 Ton Service Jack
• 2 Piece Handle with pad
• OTC Owner's Manual for Service Jacks

Supersedes P/N'S:

• 1526A
