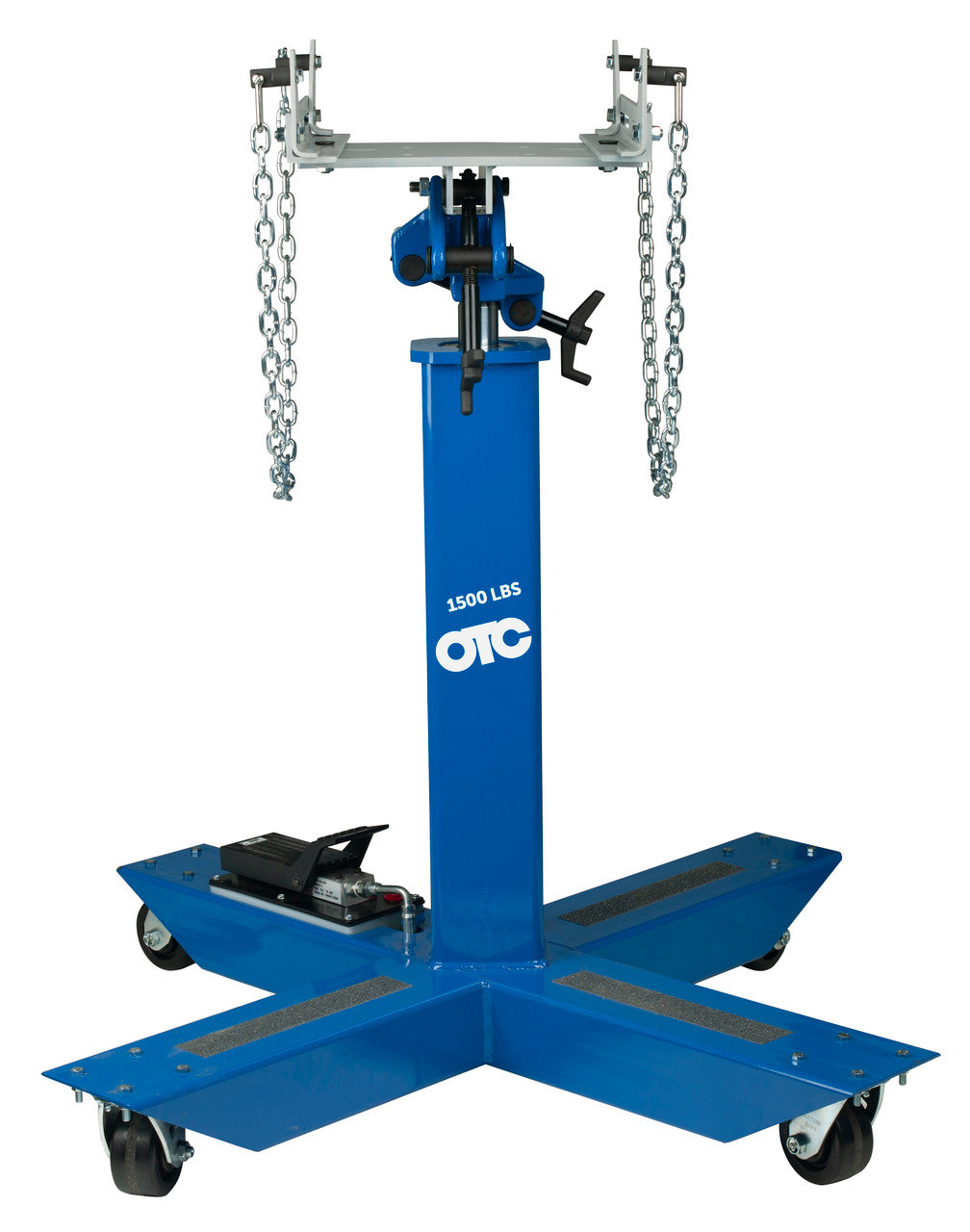

OTC TJHP15 Air-Assisted 1,500 lb Capacity High Lift Transmission Jack

An air-assist high-lift transmission jack with universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load. A foot-operated air pump controls the air/hydraulic operation, which lifts the head quickly and effortlessly to the work location. The rugged wall tubing and oversized base add strength and stability for any transmission job. Low 41-1/2" height allows jack and transmission to easily be rolled out from underneath vehicles. Ideal size and capacity for the removal and installation of truck, bus and automobile transmissions. Meets all ASME PASE-2019 safety standards. The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier. Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation. Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life. Specially designed with a wide leg base and 5" polyurethane swivel wheels for stability and easy maneuvering. A built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use.

Features:

• Made in the USA with global and domestic components.
• Rugged wall tubing and oversized base add strength and stability for any transmission job
• Foot-operated air pump controls the air/hydraulic operation, which lifts the head quickly and effortlessly to the work location
• Universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load
• Head tilts front to back and side to side to make removal and installation of transmission and driveline components easier
• Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life
• Specially designed with a wide leg base and 4" polyurethane swivel wheels for stability and easy maneuvering
• Built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use
• Ideal size and capacity for the removal and installation of truck, bus and automobile transmissions

Specifications:

• Capacity | 1,500 lbs
• Air pressure | 80–140 PSI
• Min height, retracted | 41-1/2"
• Max height | 65"
• Forward tilt (max) | 50°
• Backward tilt (max) | 38°
• Side tilt (Max, side/side) | 14°
• Leg width | 46"
• Wheel size | 4"
• Dimensions | 48" × 36" × 45"
• Weight | 312 lb

Compatible with:

• 1870 Universal transmission adapter
• 1758 Fuel tank handler
• 1797 Heavy-duty clutch adapter
