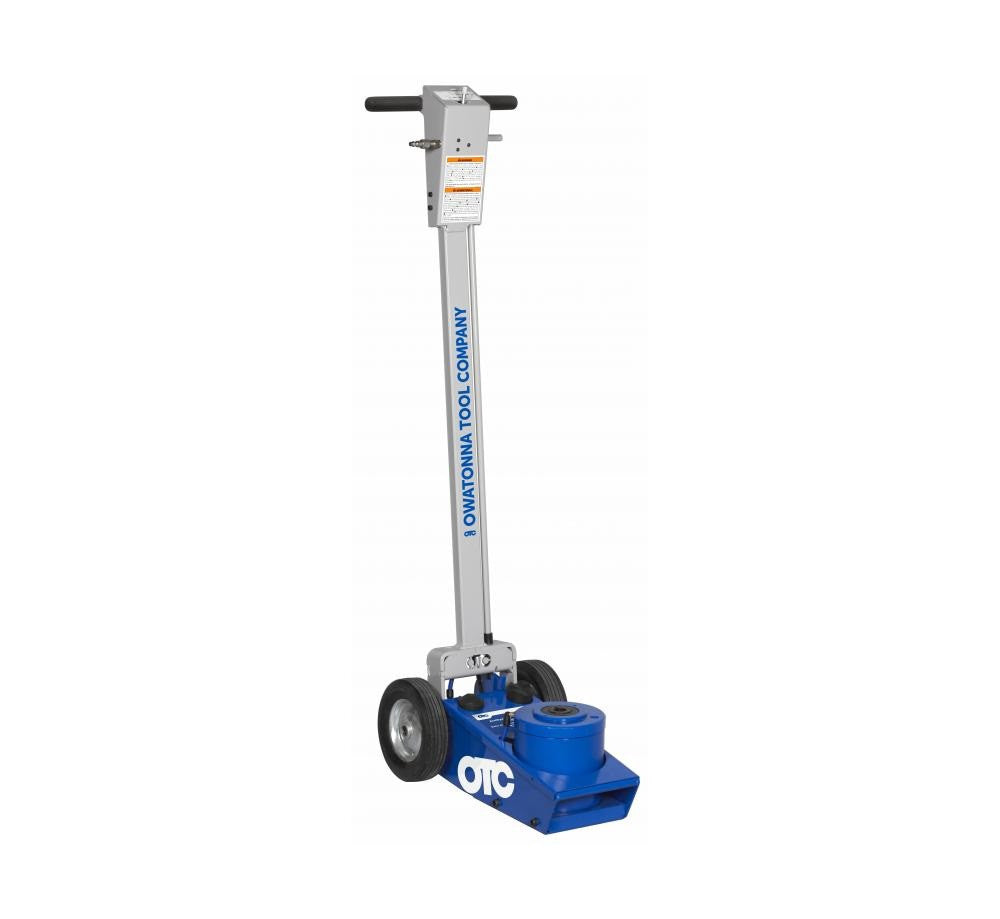

OTC UA27 27.5 Ton Under Axle Jack

Replaces the 5012A, 5092 and 5292

Features:

• Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more

• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention

• Chrome plated ram for additional rust resistance

• Wiper seals protect hydraulic system from contaminants

• 4-position handle makes it easy to position under vehicles with low overhangs

• Wide rugged base adds stability and strength

• Large rear wheels provide easy positioning and portability

• Dependable Venturi vacuum power return system feature lowers piston ram quickly with no load

Specifications:

• Capacity | 27.5 ton

• Air Pressure | 90 - 175 PSI

• Lifting range | 8-1/4" to 21-3/8" using longest saddle

• Reach | 69.87"

• Saddle | 3" dia., round with center notch. Includes 2 saddle adapters

• Max height using saddle only | 13-1/8"

• Max height using large adapter | 21-3/8"

• Frame height | 8.27"

• Handle length | 48-3/4" T handle with lowering lever and air-chuck hook

• Footprint | 22" x 12"

• Wheels | 2 fixed; 7.88" rubberized steel

• Dimensions | 22" × 12" × 54"

• Product Weight | 128 lb

• Shipping Weight | 141 lbs
