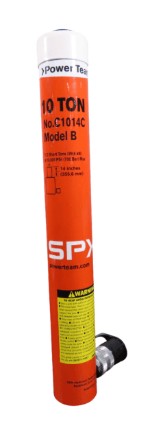

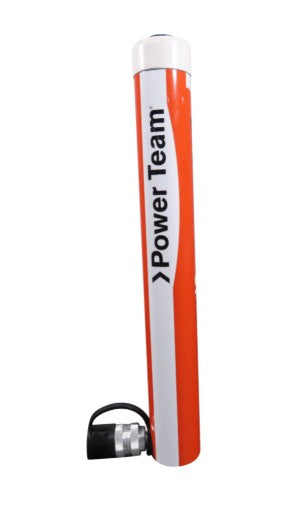

Power Team C1014C 10-Ton 14-1/8" Stroke Single Acting Cylinder

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Retracted Height | 17.75"
• Extended Height | 31.88"
• Outside Diameter | 2.25"
• Collar Thread | 21"
• Piston Collar Thread Length | 1.13"
• Base to Port | 0.75"
• Piston Rod Diameter | 1.5"
• Piston Rod Internal Thread and Depth | 1-8 x 0.75"
• Rod Protrusion | 0.25"
• Bore Diameter  | 1.69"
• Cylinder Capacity | 10 ton
• Cylinder Effective Area | 2.24 sq in
• Internal Pressure at Capacity (PSI) | 8948
• Oil Capacity | 31.6 cu in
• Stroke | 14.13"
• Tons at 10,000 PSI | 11.2 ton
• Weight | 16.2 lbs
