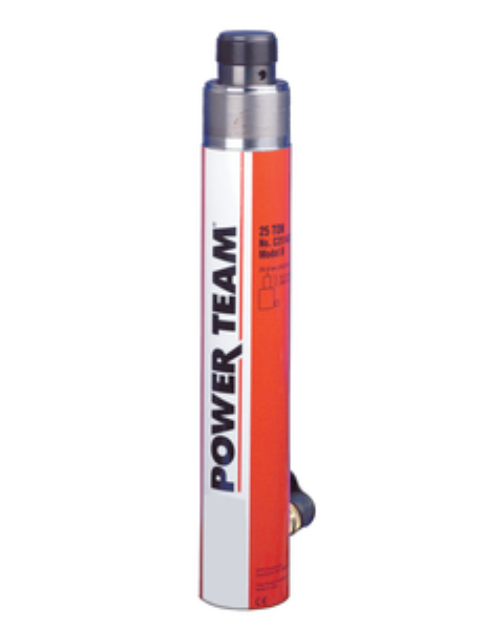

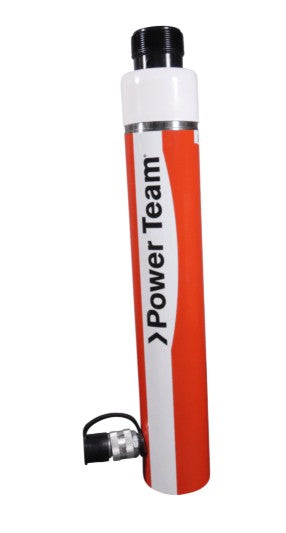

Power Team C2514CBT 25-Ton 14-1/4" Stroke Single Acting Cylinder

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Threaded piston rod end and base threads accommodate accessories and adapters.
• Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting.
• A 9796 3/8” NPTF female half coupler is standard with each cylinder. Oil port threads are 3/8" NPTF.
• Removable threaded rod cap.
• Factory accessories are do not de-rate tonnage.
• Complies with ANSI / ASME B30.1 Safety Standards.

Specifications:

• Retracted Height | 21.38"
• Extended Height | 35.63"
• Outside Diameter | 3.38"
• Collar Thread | 35"
• Piston Collar Thread Length | 1.94"
• Base to Port | 1.88"
• Piston Rod Diameter | 2.25"
• Rod Protrusion | 1.88"
• Piston Rod Thread | 2–11.5"
• Internal Base Thread (NPSM) | 2–11.5"
• Bore Diameter  | 2.56"
• Cylinder Capacity | 25 ton
• Cylinder Effective Area | 5.16 sq in
• Internal Pressure at Capacity (PSI) | 9699
• Oil Capacity | 73.5 cu in
• Stroke | 14.25"
• Tons at 10,000 PSI | 25.8 ton
• Weight | 40.2 lbs
