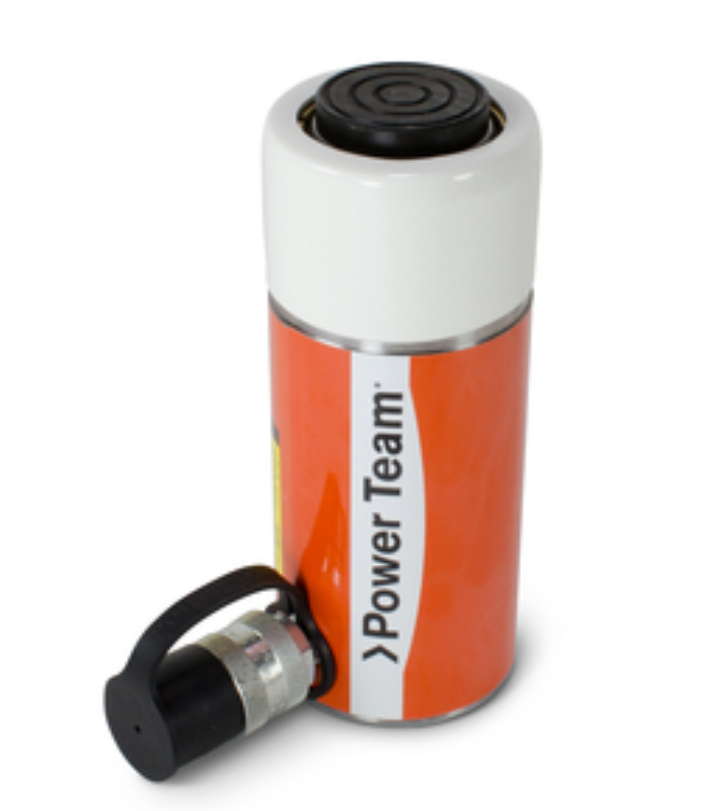

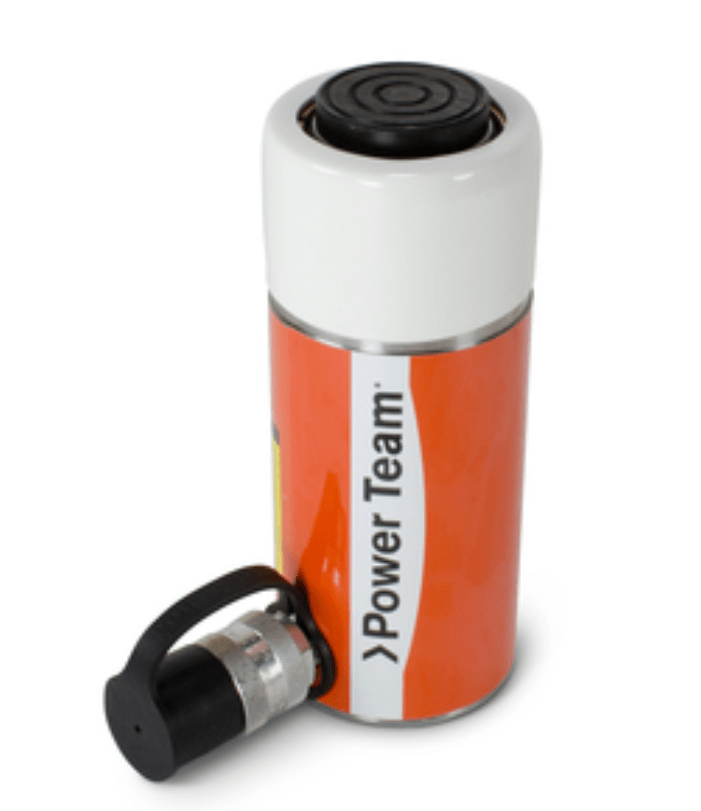

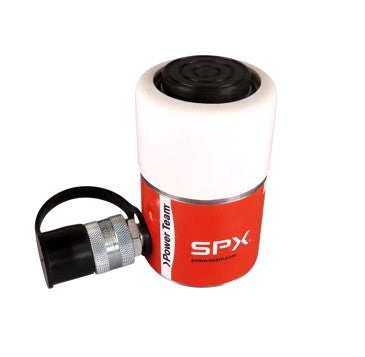

Power Team C251C 25-Ton 1" Stroke Single Acting Cylinder

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Retracted Height | 5.5"
• Extended Height | 6.5"
• Outside Diameter | 3.38"
• Collar Thread | 35"
• Piston Collar Thread Length | 1.94"
• Base to Port | 1"
• Piston Rod Diameter | 2.25"
• Piston Rod Internal Thread and Depth | 1-8 x 0.75"
• Rod Protrusion | 0.25"
• Bore Diameter  | 2"
• Cylinder Capacity | 15 ton
• Cylinder Effective Area | 3.14 sq in
• Internal Pressure at Capacity (PSI) | 9549
• Oil Capacity | 19.2 cu in
• Stroke | 6.13"
• Tons at 10,000 PSI | 15.7 ton
• Weight | 11.9 lbs
