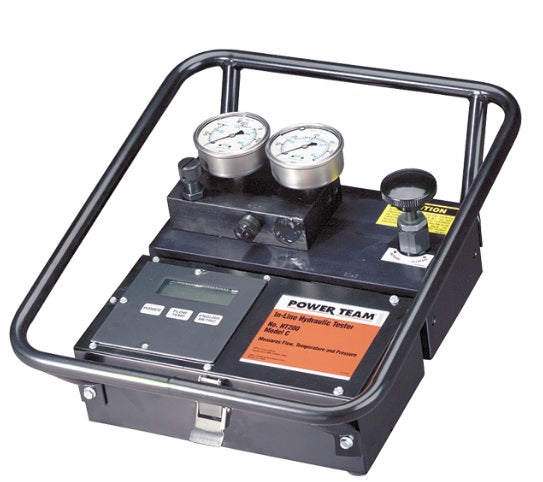

Power Team HT200 Hydraulic Tester

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Accurately measure oil flow, pressure and temperature on in-plant equipment, forklifts, machine tools and more.
• Temperature and flow readings are in Metric and English, accurate to within ±2% of full scale.
• Dual pressure gauges for high- and low-pressure readings; low pressure gauge is automatically shut off and protected as pressure rises beyond its maximum reading.
• Automatic pressure compensating feature lets you increase flow without affecting pressure setting.
• Reverse flow through tester will not cause damage; replaceable safety disc ruptures if pressure exceeds upper limit.
• Solid state voltage regulator eliminates errors caused by voltage change during testing.

Specifications:

• Max Flow | 200 gpm
• Flow Range | 25-200 gpm high, 5-40 gpm low / 100-750 l/min high, 20-150 l/min high
• Max Operating Pressure | 5,000 psi / 345 Bar
• Temp Scale Range | 100-250°F / 40-120°C
• Port Sizes | 1-1/2" SAE Split Flange (not included)
• Dimensions | 15-7/8" x 13-1/4" x 6-3/4"
• Product Weight | 28.2 lbs
