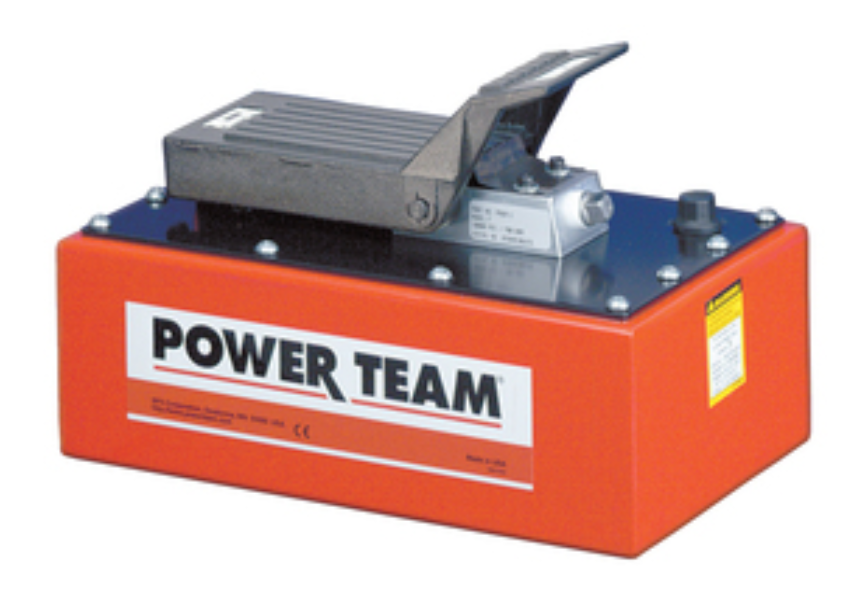

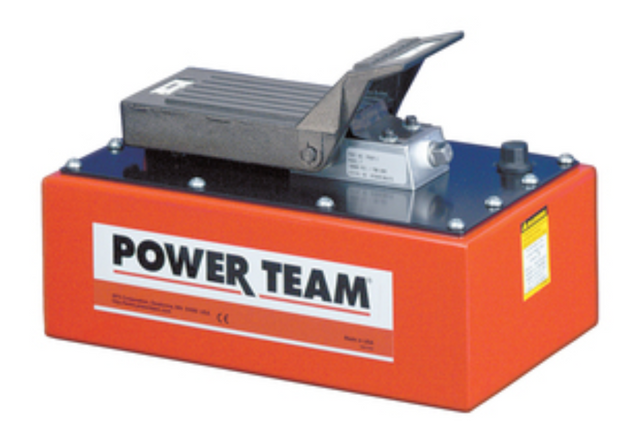

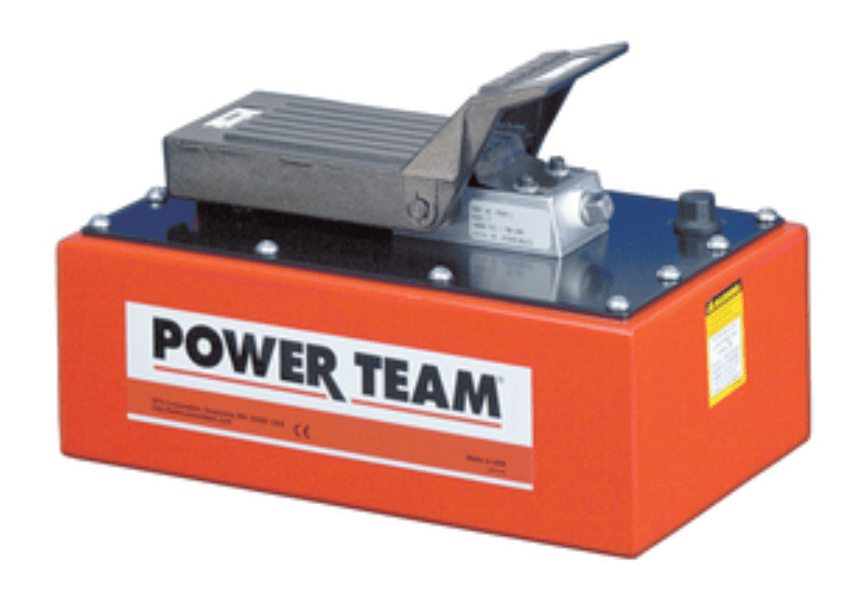

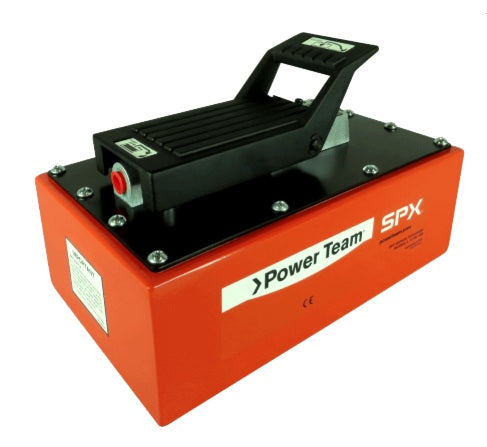

Power Team PA6M-1 Single-Acting Hydraulic Air Pump

Images are representative and for illustrative purposes only, actual product may differ from image shown. Ships from Illinois

Compact, lightweight and portable. Single-speed pumps designed to drive single-acting cylinders. Base model pump with a 1 gallon metal reservoir.

Features:

• The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment.
• Operate at 40-100 psi shop air pressure at the pump.
• dBA 85 at 10,000 psi.
• Serviceable pump motor is not a “throw away,” providing economical repair.
• Permanently vented reservoir cap.
• Internal relief valve protects circuit components, air inlet filter protects motor.

Specifications:

• Air Supply Required | 40-120 psi (3-8 bar)
• Reservoir Capacity | 1 gal (3,8 L)
• Reservoir Usable | 185 cu in (3,0 L)
• Oil Port | 3/8" NPTF
• Weight | 23.7 lbs (10,7 kg)
• Overall Dimensions | 7-7/8"h x 7-3/8"w 12-5/8"d
