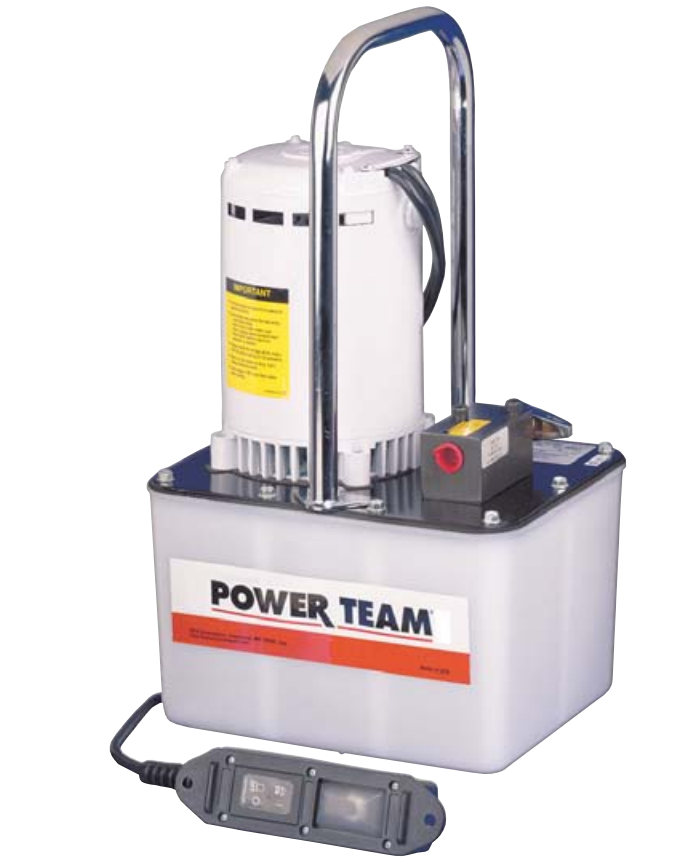

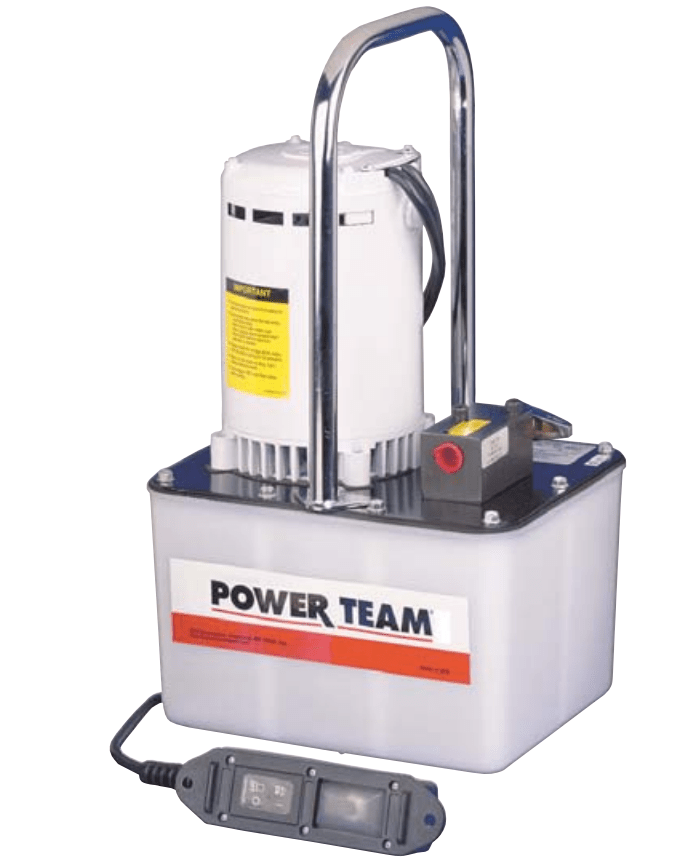

Power Team PE172AM Single-Acting Hydraulic Pump

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Best suited for crimping, punching and pressing. Not for lifting. Aluminum reservoir. The 17 series hydraulic pumps are designed to have a maximum of 690 bar (10,000 psi) at a flow rate of 278 cc/min (17 cu. in/min).

Features:

• For use with single or double-acting cylinders at operating pressures up to 10,000 psi.
• For intermittent duty; starts under full load.
• Equipped with 1⁄2 hp, 3,450 rpm, single-phase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord)
• Low amperage draw; small generators and low amperage circuits can be used as power source.
• Extremely quiet noise level (67-81 dBA).

Specifications:

• Valve Type | Auto
• Valve Function | Advance
• Control Switch | Remote Motor Control (10ft.) on
• Motor | 1
• Amp Draw (115 V @ 10,000 PSI) | 10 Amps
• RPM | 3450
• Reservoir Usable (CU. IN. [L]) | 375 [6]
• Maximum Pressure Output (PSI [BAR]) | 10,000 [700]
• DBA @ Idle and 10,000 PSI [700 BAR] | 67
• Oil Delivery (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR] | 290 [4,6]
• Oil Delivery (CU. IN./MIN. @ 100 PSI [L/MIN. @ 7 BAR]) | 190 [2,5]
• Oil Delivery (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR]) | 20 [0,3]
• Oil Delivery (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR]) | 16 [0,2]
• Weight (with oil) | 53
