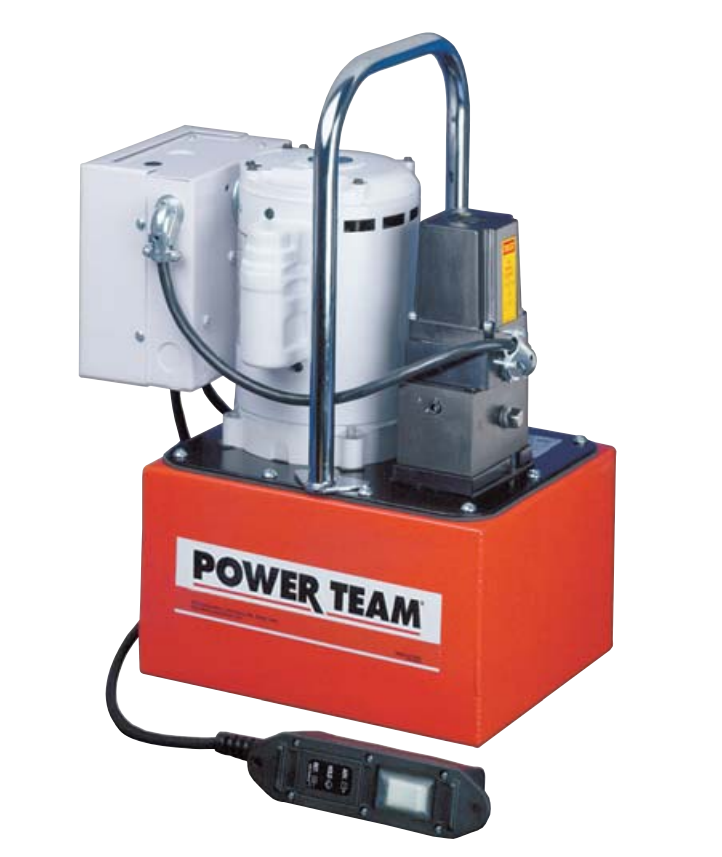

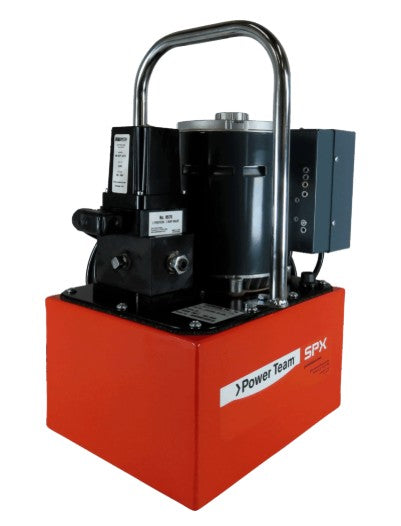

Power Team PE172SM Single-Acting Hydraulic Pump

Images are representative and for illustrative purposes only, actual product may differ from image shown.

1/2 hp pump with 2 gallon aluminum reservoir with solenoid-operated valve for use with single-acting cylinders. The 17 series hydraulic pumps are designed to have a maximum of 690 bar (10,000 psi) at a flow rate of 278 cc/min (17 cu. in/min).

Features:

• For use with single or double-acting cylinders at operating pressures up to 10,000 psi.
• For intermittent duty; starts under full load.
• Equipped with 1⁄2 hp, 3,450 rpm, single-phase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord)
• Low amperage draw; small generators and low amperage circuits can be used as power source.
• Extremely quiet noise level (67-81 dBA).

Specifications:

• Valve Type | 3-Way
• Valve Function | Advance
• Control Switch | Remote Motor Control (25ft.) on
• Motor | 1
• Amp Draw (115 V @ 10,000 PSI) | 10 Amps
• RPM | 3450
• Reservoir Usable (CU. IN. [L]) | 375 [6]
• Maximum Pressure Output (PSI [BAR]) | 10,000 [700]
• DBA @ Idle and 10,000 PSI [700 BAR] | 67
• Oil Delivery (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR] | 290 [4,6]
• Oil Delivery (CU. IN./MIN. @ 100 PSI [L/MIN. @ 7 BAR]) | 190 [2,5]
• Oil Delivery (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR]) | 20 [0,3]
• Oil Delivery (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR]) | 16 [0,2]
• Weight (with oil) | 53
