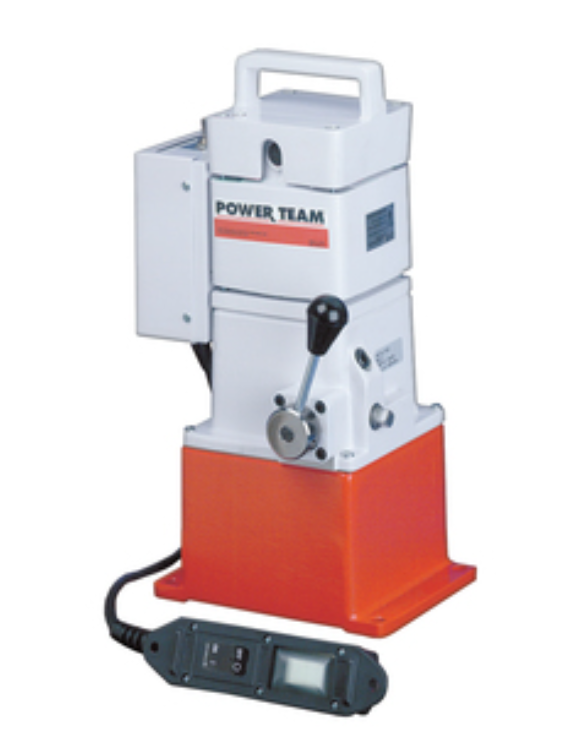

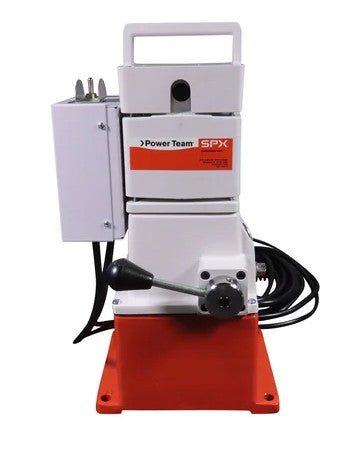

Power Team PE182 Single-Acting Electric Pump

Base model pump has 1/2hp pump with 2-way valve and 1/2 gal reservoir.

Equivalent to OTC4031

Features:

• Ideal for use with small hydraulic power tools.
• Vanguard Jr.® pumps provide two-speed high performance in a light-weight, compact package.
• Gauge port provided on pump. Metal reservoir included.
• Equipped with a 1⁄2hp, 115 volt, 60/50 Hz single phase motor that starts under load, even at reduced voltage.
• Low amperage draw permits use with smaller generators and low amperage circuits.
• Includes a 10 foot remote control.
• CSA rated for intermittent duty.
• Noise level of 85-90 dBA.

Specifications:

• Cylinder Type | Single-Acting
• Valve Type | 2-Way
• Valve Function | Advance
• Control Switch | Remote Motor Control (10 ft. [3,1 m])
• Motor | 1/2 hp, 110/115VAC, 50/60 Hz, A.C., Single Phase (Available with 220 Volt, specify when ordering)
• Reservoir Usable (cu. in. [L]) | 104 [1,7]
• Max Pressure Output (psi) | 10,000
• RPM | 12,000
• dBa at Idle and 10,000 (psi) | 85/90 (Measured at 3 ft. distance, all sides)
• Oil Delivery (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR]) | 230 [3,7]
• Oil Delivery (CU. IN./MIN. @ 100 PSI [L/MIN. @ 7 BAR]) | 190 [2,5]
• Oil Delivery (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR]) | 25 [0,4]
• Oil Delivery (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR]) | 18 [0,3]
• Amp Draw 115V at 10,000 (psi) | 10.2 amps
• Weight (with oil) | 30 lbs
