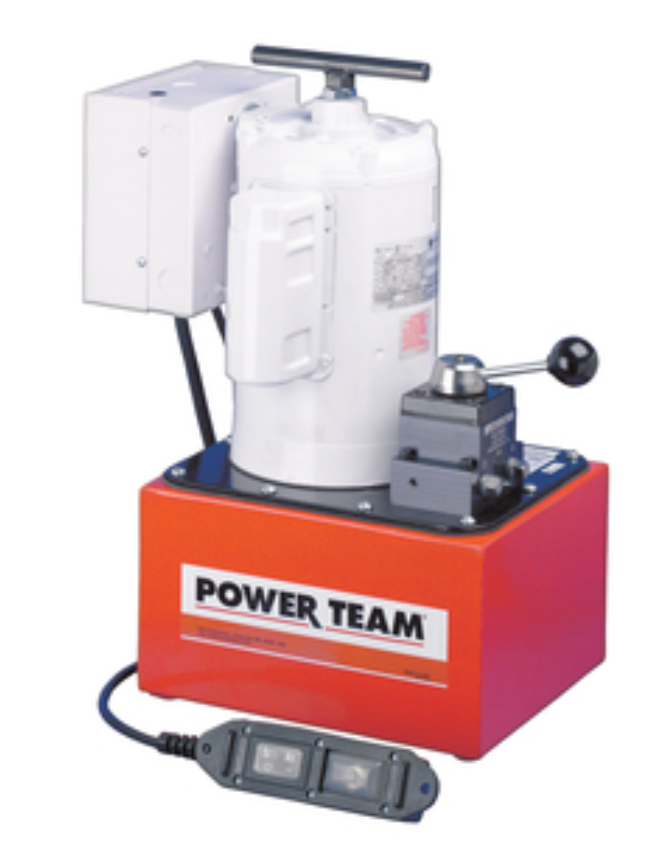

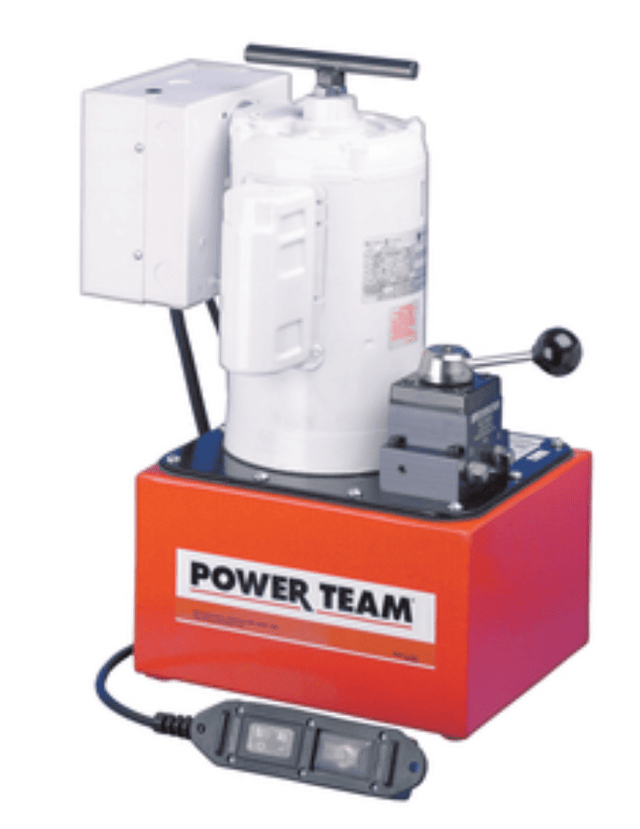

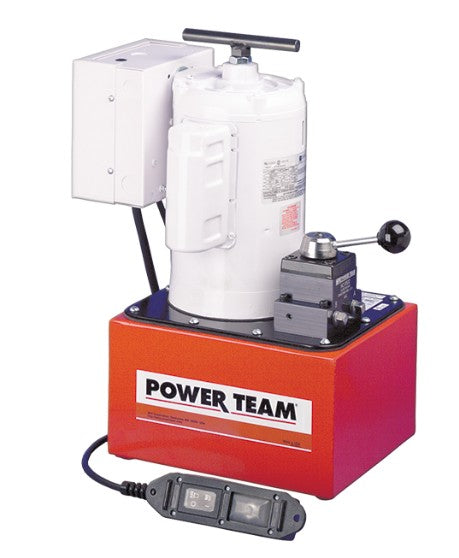

Power Team PE464 Double-Acting/Multi-Single Acting Electric Pump

Image may differ than actual product.

Base model 1-1/2 hp pump with 2-1/2 gal metal reservoir and 9500 double acting valve.

Equivalent to OTC4057

Features:

• Two-speed high performance pump.
• For use with single or double-acting cylinders at operating pressures up to 10,000 psi.
• Equipped with a 1-1⁄2 hp, 3,450 rpm single-phase, 60 Hz thermal protected induction motor that starts under full load. Noise level of 77-81 dBA.
• Equipped with a 10 foot remote control.
• 24 volt control circuit on all units with remote control.

Specifications:

• For Use With Cylinder Type | Double-Acting/Multi-Single Acting
• Valve Type | 4-Way
• Valve No. | 9500
• Valve Function | Advance Hold Return (“Advance” position holds pressure with motor shut off. “Return” position returns cylinder.)
• Control Switch | Remote Motor Control (10ft) on/off
• Motor | 1-1/2 hp, 115/230 VAC 60 Hz, Single Phase (Available with 220V 50 Hz motor- specify when ordering)
• Amp Draw (115 V @ 10,000 PSI [220 V @ 700 BAR]) | 25 Amps [13 Amps]
• RPM @ 60 HZ [RPM @ 50 HZ] | 3,450 [2.875]
• Reservoir Usable | 590 cu in
• Maximum Pressure Output (PSI [BAR]) Max | 10,000 [700]
• DBA @ Idle and 10,000 PSI [700 BAR] | 77
• Oil Delivery (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR]) | 500 [6,7]
• Oil Delivery (CU. IN./MIN. @ 700 PSI [L/MIN. @ 100 BAR]) | 450 [7,2]
• Oil Delivery (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 5,000 BAR]) | 51 [0,7]
• Oil Delivery (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 10,000 BAR]) | 46 [0,6]
• Weight with oil | 79 lbs
