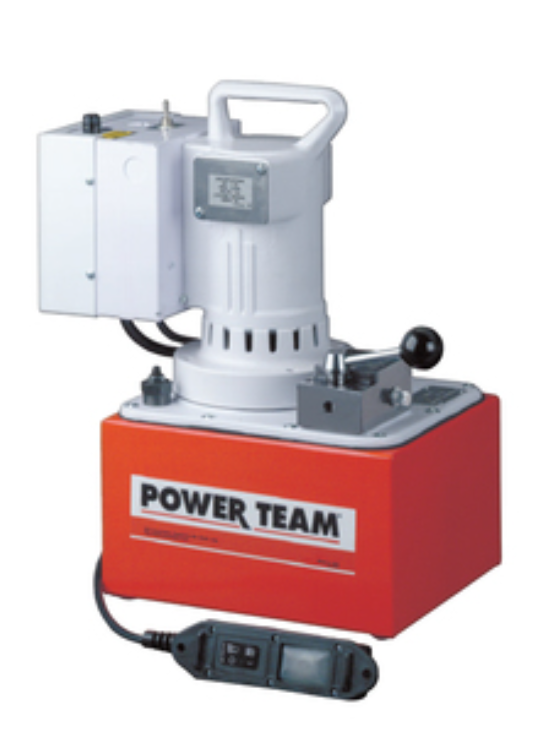

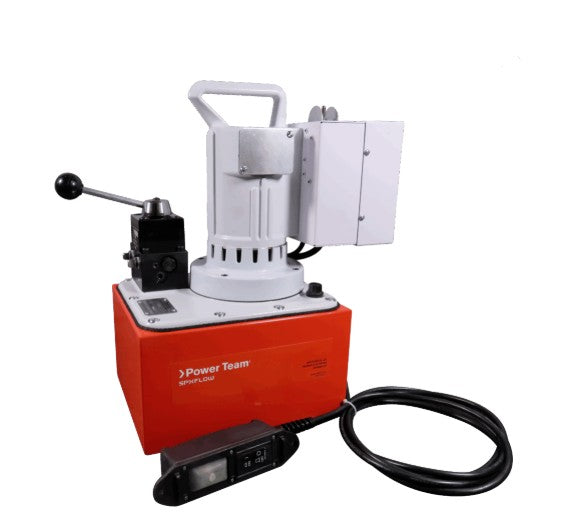

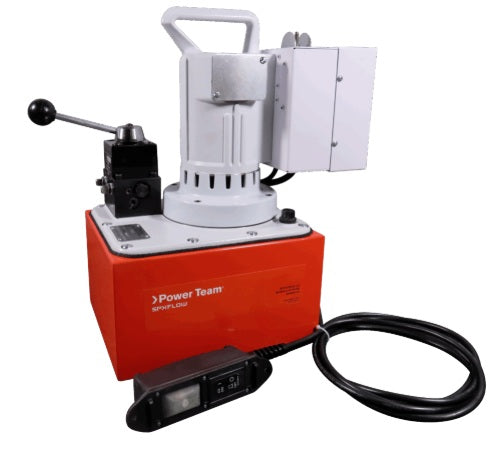

Power Team PE554 Double-Acting Electric Pump

Image may differ than actual product.

Base model 1-1/8 hp pump with 2.5 gallon reservoir and 4-way valve for double-acting systems.

Equivalent to OTC4064

Features:

• True unloading valve achieves greater pump efficiency, allowing higher flow at maximum pressure.
• Lightweight and portable. Best performance-to-weight ratio of all Power Team pumps.
• 10 foot remote motor control
• Pumps available with 230VAC, 60/50 Hz motors. Specify voltage when ordering.

Specifications:

• For Use With Cylinder Type | Double-Acting
• Valve Type | 4-Way (valves have Posi-Check® feature)
• Valve No. | 9506
• Valve Function | Advance Hold Return
• Control Switch | Remote Motor
• Motor | 1-1/8 hp*, 110/115 VAC 50/60 Hz, Single-Phase
• Amp Draw (115 V @ 10,000 PSI [220 V @ 700 BAR]) | 25 Amps [13 Amps]
• RPM | 12000
• Reservoir Usable Oil Cap | 525 cu in
• Maximum Pressure Output (PSI [BAR]) Max | 10,000 [700]
• DBA @ Idle and 10,000 PSI [700 BAR] | 90
• Oil Delivery (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR]) | 704 [11,3]
• Oil Delivery (CU. IN./MIN. @ 700 PSI [L/MIN. @ 50 BAR]) | 440 [7,1]
• Oil Delivery (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR]) | 74 [1,2]
• Oil Delivery (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR]) | 56 [0,9]
• Weight with oil | 65 lbs
