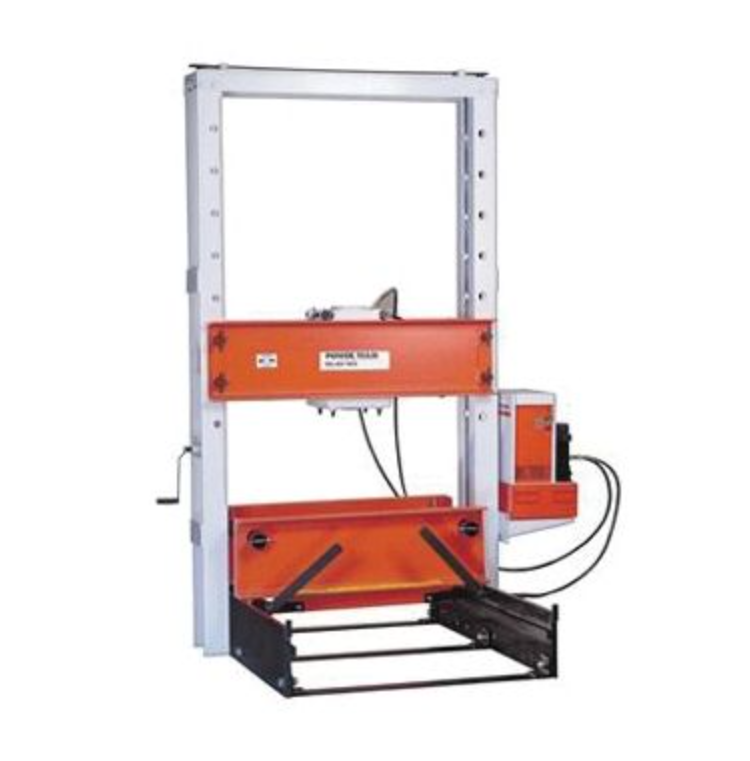

Power Team RB8013S Floor Press

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• The original, patented Roll-Bed® extends out for easy loading and unloading with a crane or other lifting device, supporting loads up to 3,000 lbs.

• Movable work-head glides easily side-to-side for full off center load capacity across width of upper frame.
• “Daylight” is 50.5" x 60" for 80 and 100 ton models; 51.25" x 64" on 150 and 200 ton presses.
• Fast approach of double-acting, 13.125" stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel.
• Adjustable lower bed width for secure balancing and centering of heavy jobs.
• Lifting mechanism has a turn crank handle to raise or lower upper bolster (a heavy-duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.

Specifications:

• Capacity | 80 ton
• Type of Cylinder | Double-Acting
• Stroke | 13.13”
• Cylinder Model | RD8013

• Speed | 46” / 7.5”

• Type of Pump | Electric
• Valve Type | 4-way*

• Pump Model | PQ1204S

• Weight | 2,886 lbs

*Solenoid valve with 24VAC remote control hand switch.
