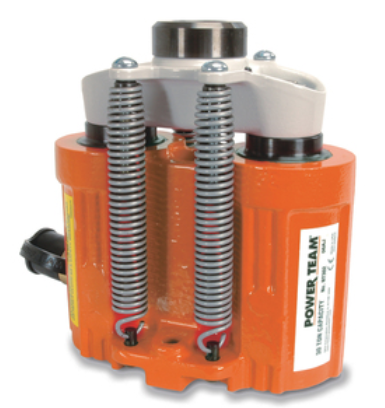

Power Team RT503 50 Ton Cylinder with 3" Stroke

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Single-Acting, Spring-Return and Double-Acting Power Team cylinder, ideal for pulling and pressing. A proven design; used throughout industry for over 45 years. The RT Series cylinders are compactly designed to withstand full “dead-end” loads. Basic cylinder head can be changed from a tapped hole to plain hole by simply changing insert. Pistons have “Power Tech” treatment for corrosion and abrasion resistance.

Features:

• A proven design; used throughout the industry for over 45 years.
• Cylinders withstand full “dead-end” loads.
• Compact design: ideal for applications in which space is limited.
• Basic head can be changed from a tapped hole to plain hole by simply changing insert.
• Pistons have “Power Tech” treatment for corrosion and abrasion resistance.

Specifications:

• CYLINDER EFFECTIVE AREA (SQ. IN. [CM²] | 9.81 [63,3]
• CYLINDER CAPACITY - PUSH (TONS) | 50
• INTERNAL PRESSURE AT CAPACITY (PSI) | 10193
• MOUNTING HOLE (IN. [MM]) | 0.66 [16,7]
• OIL CAPACITY - PUSH (CU. IN. [CM³]) | 29.40 [482,0]
• OIL CAPACITY - RETURN (CU. IN. [CM³]) | –
• STROKE (IN. [MM]) | 3.00 [76,2]
• TONS AT 10,000 PSI [METRIC TONS AT 700 BAR] | 49.10 [44,5]
• WEIGHT (LBS. [KG]) | 56.00 [25,4]
