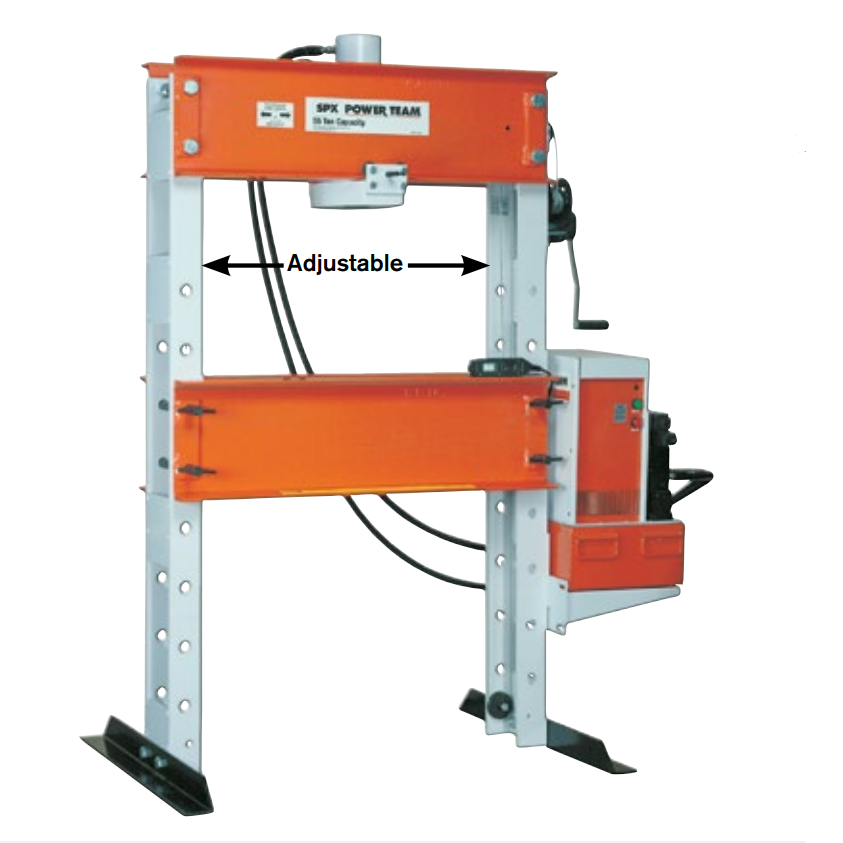

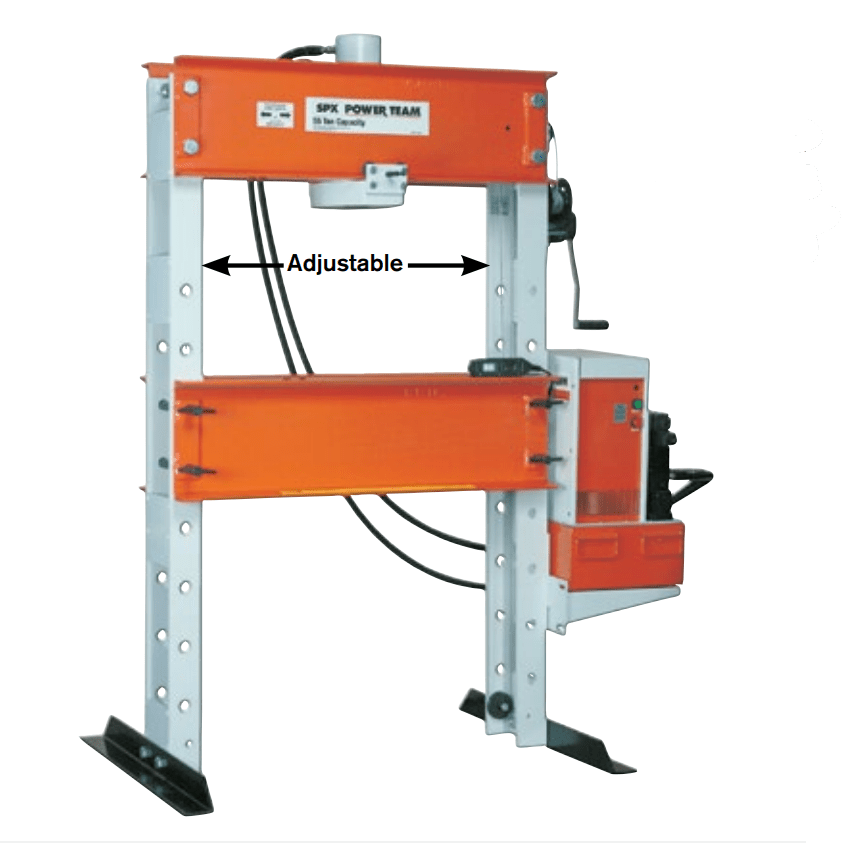

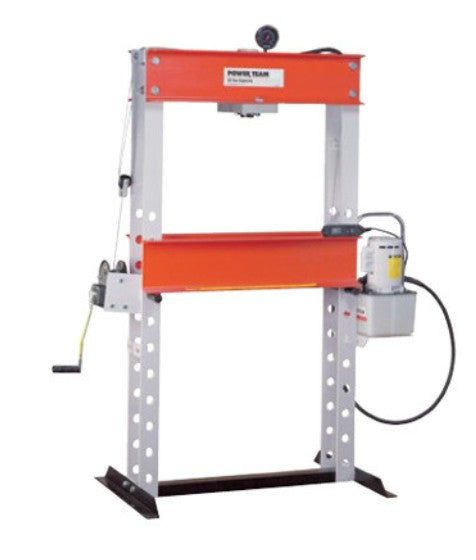

Power Team SPA556 55-ton Single-Acting H-Frame Floor Press

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Full off-center pressing at full rated capacity across width of upper frame without buckling or bending.

• Maximum “daylight” is 42” x 36”, making positioning of even bulky work pieces easy.
• Height of press bed is easily adjusted with winch. Friction brake prevents bed from dropping and handle from spinning upon release.
• Presses with single-acting cylinders offer choice of 2-speed hand operated, electric/hydraulic, or air/ hydraulic pump. Models with double-acting cylinders have an electric/hydraulic pump.
• Press models equipped with remote control enable operator to view work from all sides with fingertip control of cylinder piston travel.
• Press can be used horizontally for special applications with user-supplied support legs.
• Hydraulic gauge and hydraulic fittings are included with presses.

Specifications:

• Capacity | 55 ton
• Type of Cylinder | Single-Acting
• Stroke | 6.25”
• Cylinder Model | C556C

• Speed | 4.5” / 0.5”

• Type of Pump | Air
• Valve Type | 2-way foot

• Pump Model | PA6
• Weight | 804 lbs
