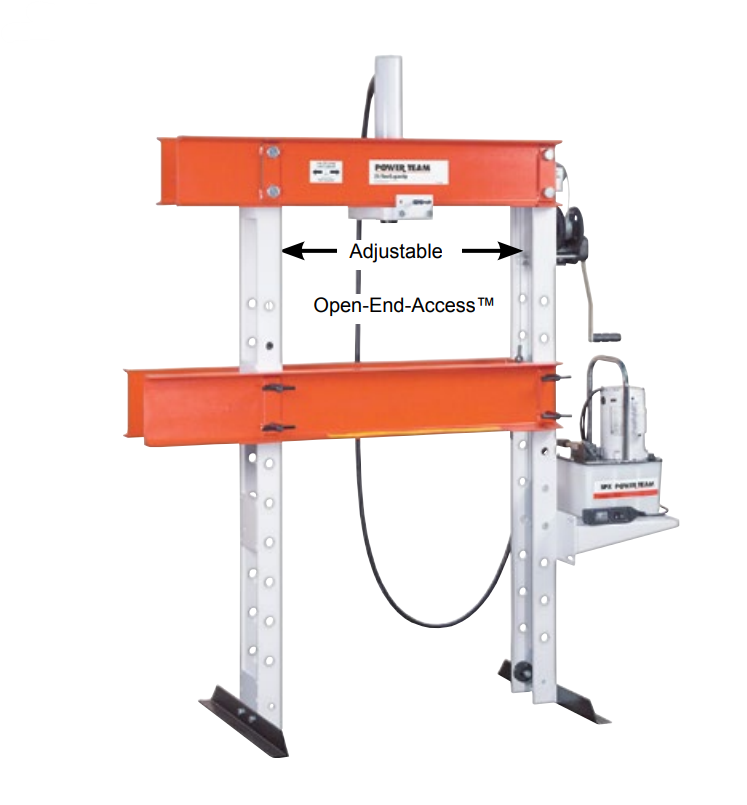

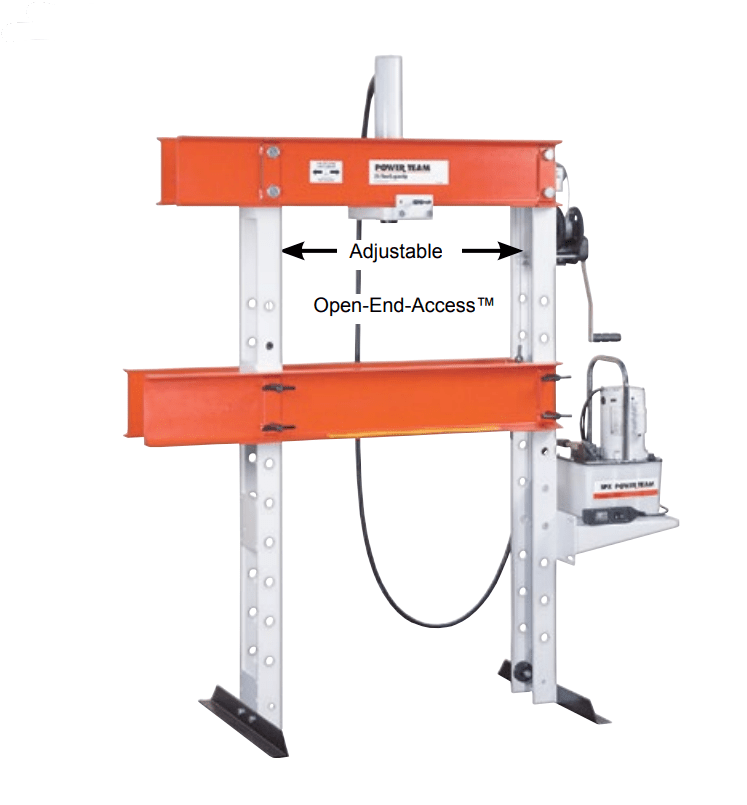

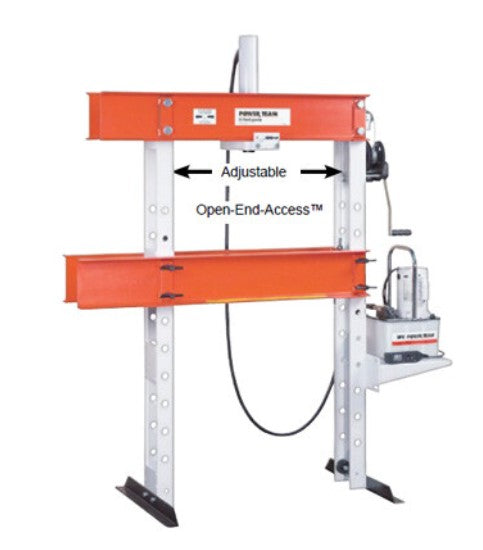

Power Team SPE2514DS 25-ton Double-Acting H-Frame Open-End Access Floor Press

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Design permits use as both H-Frame and C-Frame press. Cylinder can be mounted on frame extension to handle jobs which won’t fit between uprights.

• Open-end-Access™ press models are also available with remote control to enable the operator to view work from all sides with fingertip control of cylinder piston travel.
• Off-center pressing loads of full capacity can be applied across entire width of frame.
• Press bed height easily adjustable with winch. Bed will not drop when handle is released.
• Choice of power sources for rapid cylinder advance: two-speed hydraulic.

Specifications:

• Capacity | 25 ton
• Type of Cylinder | Double-Acting
• Stroke | 14.25”
• Cylinder Model | RD2514
• Speed | 52” / 4.0”

• Type of Pump | Electric
• Valve Type | 4-way*

• Pump Model | PE214S
• Weight | 787 lbs

*Solenoid valve with 24VAC remote control hand switch.
