Powermatic  |  SKU: POW1280100C

Powermatic 1280100C PM2700 Shaper, 3HP 1PH 230V

$4,799.99
Contact Us

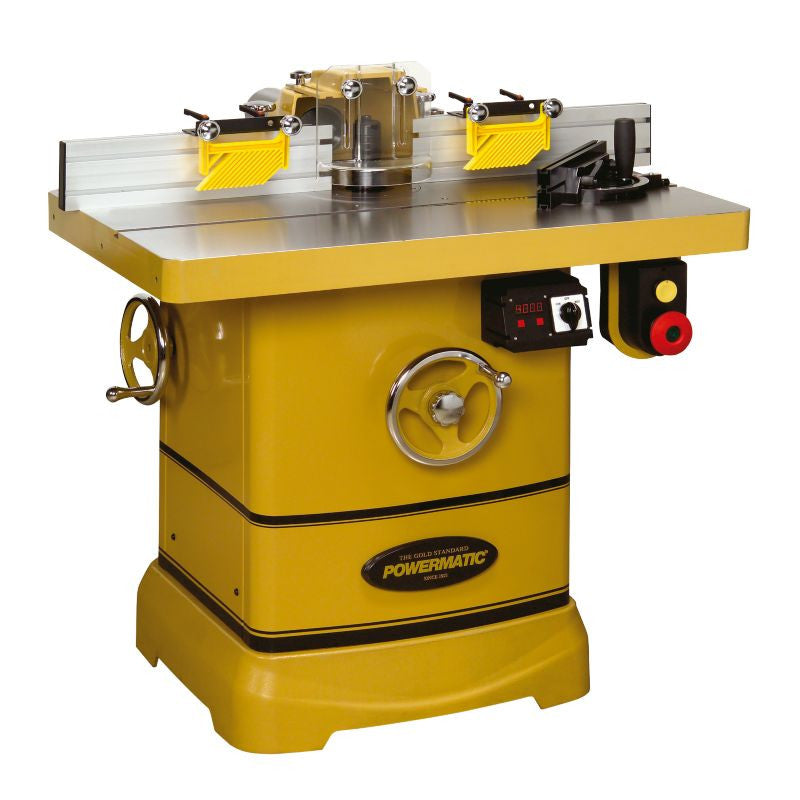

Powermatic PM2700

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Click Here or give us a call at 800-837-3818 for written price quote

Free shipping to commercial or residential address

Features:

  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
  • Convenient quick lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 3HP totally enclosed motor offers plenty of power
  • Two spindle speeds (reversible) for a variety of work
  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table pre-drilled and tapped for feeder mounting in two locations
  • Fence has dual feather boards for work holding
  • Dual 4" ports for attachment to dust collection system
  • Standard Equipment:
  • 3/4" and 1-1/4" interchangeable spindle collets
  • Spindle height digital readout
  • Feather board hold downs
  • Deluxe miter gauge
  • Integrated caster system

Style (Type) Shaper
Spindle Speed (RPM) 7,500, 10,000
Maximum Spindle Diameter (In.) 1-1/4
Spindle Size Under Nut (In.) 3/4 (3-3/4), 1-1/4 (6)
Spindle Travel (In.) 4
Spindle Tilt (Deg.) N.A.
Reversible Yes
Table Opening Diameter (In.) 7-3/8
Table Inserts (In.) 2-35/64, 45/32, 5-3/4
Table Insert Opening Diameter (In.) 2-35/64, 4-5/32, 5-3/4
Table Size (In.) 40 x 30
Table Travel (In.) N.A.
Table Height from Floor (In.) 35-1/2
Sliding Table Size (In.) N.A.
Fence Size (L x H) (In.) 18-3/4 x 4-7/8
Fence Travel (Major and Minor) (In.) N.A.
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Digital Readouts Spindle Height
Electrical Controls Yes
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230
Motor Current (Amps) 14
