Powermatic 1791216K PWBS-14CS, 14" Bandsaw.

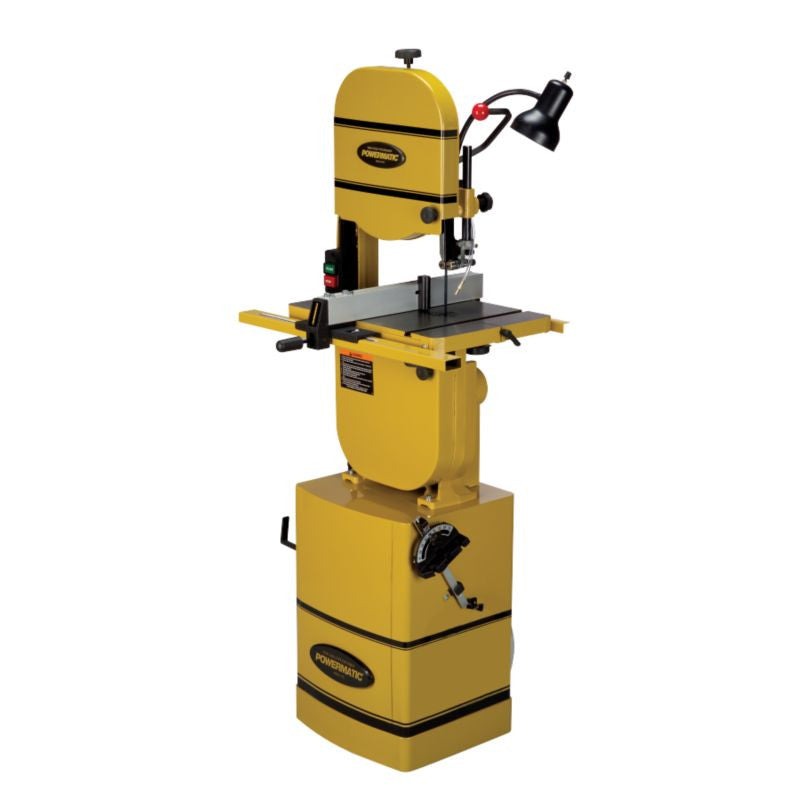

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features:
- CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
- Extra-large, two piece cast iron table consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20"
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Exclusive design, quick-release precision T-square style rip fence with 4" resaw attachment
- Precision balanced, nine spoke cast iron wheels reduce vibration
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Full 6" under guide capacity with 13-1/2" width capacity
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Rigid one-piece welded stand requires no assembly
- Standard Equipment:
- CARTER quick tension release
- Adjustable miter gauge
- T-style rip fence with resaw assembly
- 3/8" bandsaw blade
- Gooseneck work lamp and chip blower
Specifications:
| Part Number | 1791216K |
| Cutting Capacity Width | 13½ " |
| Cutting Capacity Height | 6 " |
| Minimum Saw Blade Width | 1/8 " |
| Maximum Saw Blade Width | ¾ " |
| Blade Speed | 3000 SFPM |
| Blade Length | 93½ " |
| Table Dimension (LxW) | 15 X 15 " |
| Table Dimension with Extension (LxW) | 15 x 20 1/2 " |
| Table Tilt | 10 ° left, 45 ° right |
| Table Height From Floor | 44 " |
| Dust Port Outer Diameter | 4 " |
| Stand Type | Closed |
| Thickness Capacity (max) | 6 " |
| Bandsaw Size | 93½ " |
| Wheel Diameter | 14 " |
| Motor Power | 1½ HP |
| Motor Voltage | 115 / 230 V |
| Prewired Voltage | 115 V |
| Motor Current | 11 / 5.5 A |
| Motor Phase | 1 Ph |
| Model Number | PWBS-14CS |
| Brand | Powermatic |
| Overall Dimensions | 20 x 34 x 68 |
| Height | 68 inch |
| Width | 34 inch |
| Length | 20 inch |
| Net Weight | 250 pound |
