Powermatic | SKU:
POW1791230K

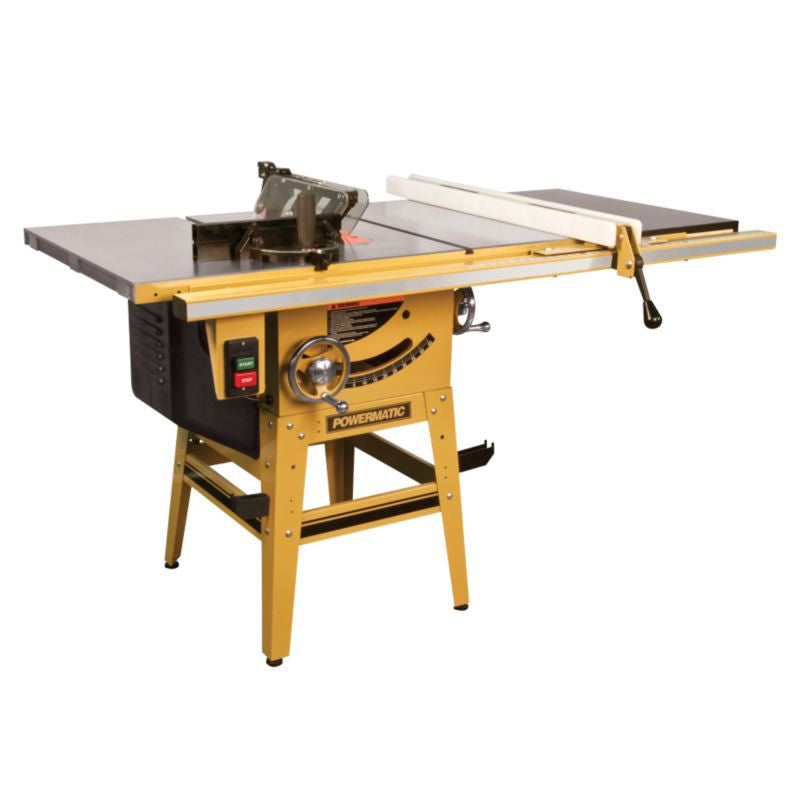

Powermatic 1791230K 64B Tablesaw With 50" Fence
$2,543.99
Unit price
/
Unavailable
Powermatic 1791230K 64B Tablesaw With 50" Fence is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Powermatic 64B Table Saw
Free shipping to commercial or residential address
Description:
The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops, and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
Features:
- Riving knife maintains close blade proximity to reduce chance of kickback
- Micro-adjust miter gauge with extension plate offers wider crosscut support
- Blade guard and riving knife have quick release for tool-less mounting and removal
- Precision ground cast iron table and wings have beveled edge for smooth miter gauge entry
- Built-in extraction port increases dust collection efficiency
- Heavy cast iron trunnion ensures smooth blade positioning
- Chrome trimmed handwheels are ergonomically designed
- Accu-Fence locks to rail without play
- (Blade not included)
Specifications:
| Part Number | 1791230K |
| Blade Diameter | 10 " |
| Arbor Diameter | 5/8 " |
| Arbor Speed | 4000 RPM |
| Maximum Depth of Cut | 3 1/8 " |
| Maximum Depth of Cut at 45 Degrees | 2 1/8 " |
| Maximum Rip Right of Blade | 50 " |
| Maximum Rip Left of Blade | 12 " |
| Table in Front of Saw Blade at Maximum Depth of Cut | 11½ " |
| Maximum Width of Dado | 13/16 " |
| Maximum Diameter of Dado | 8 " |
| Table Type | cast iron |
| Table Height | 36 " |
| Table Size without Extension (L x W) | 44-1/4 x 27 " |
| Table Size without Wings (L x W) | 20 x 27 " |
| Dust Port Outside Diameter | 4 " |
| Dust Collection Minimum CFM Required | 350 cu.ft/min |
| Miter Gauge Type | T-slot with stops |
| Motor Power | 1¾ HP |
| Motor Voltage | 115 / 230 V |
| Prewired Voltage | 115 V |
| Motor Current | 15 / 7.5 A |
| Motor Phase | 1 Ph |
| Web Description | 64B TABLE SAW, 1.75 HP 115/230V, 50" FENCE WITH RIVING KNIFE |
| Model Number | 64B-50 |
| Brand | Powermatic |
| Overall Dimensions | Shipping: 39"L x 25"W x 22"H; Assembled 79-5/8"L x 43"W x 42"H |
