Powermatic  |  SKU: POW1791264

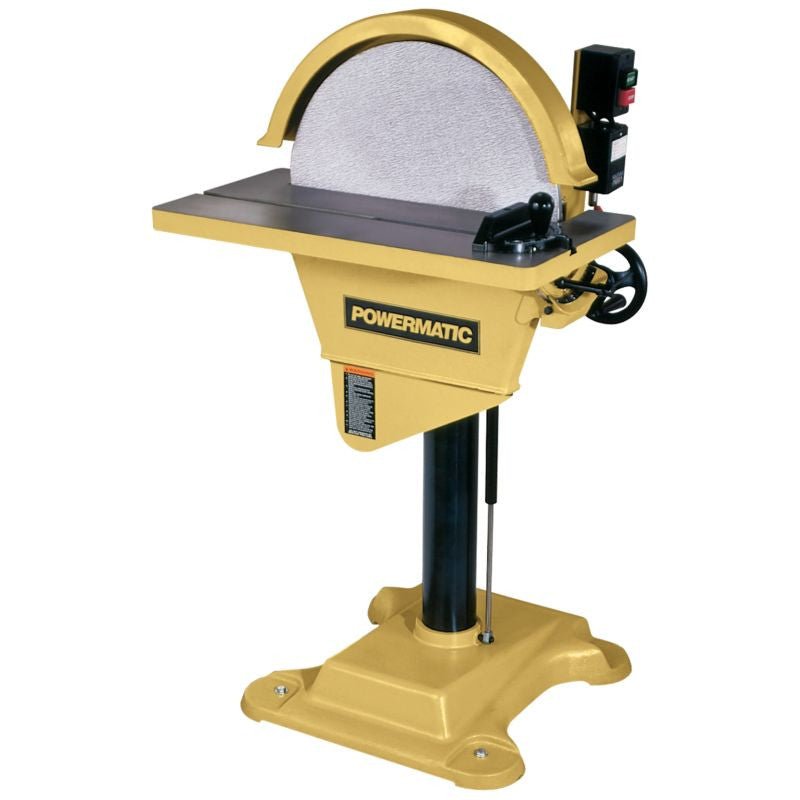

Powermatic 1791264 DS-20 Disc Sander (Wired 230V), Reversing Feature

$3,399.99
Contact Us

Powermatic Model DS20 1791264 Disc Sander

This Powermatic sander ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.

Description:

The DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.

Features:

  • Direct drive from motor to disc for maximum efficiency
  • Forward/reverse switch
  • Tilting table allows bevel sanding
  • Miter gauge for angle sanding
  • 20" sanding disc for larger workpieces
  • 4" port for connection to any dust collection system
  • Cast iron base for rigidity

Specifications:

Part Number 1791264
Disc Diameter 20 "
Disc Speed 1720 RPM
Disc Table Size (L x W) 10 1/2 x 27 1/2 "
Disc Table Tilt 30 ° up, 45 ° down
Canister Filter n.a.
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 600 cu.ft/min
Motor Power 3 HP
Motor Voltage 230 / 460 V
Prewired Voltage 230 V
Motor Phase 3 Ph
Model Number DS20
Brand Powermatic
Overall Dimensions 29.5 x 26.5 x 49
Height 53 inch
Width 26.5 inch
Length 29.5 inch
Net Weight 426 pound
