Powermatic 1794224K 4224B Woodworking Lathe
Powermatic 1794224K 4224B Woodworking Lathe is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

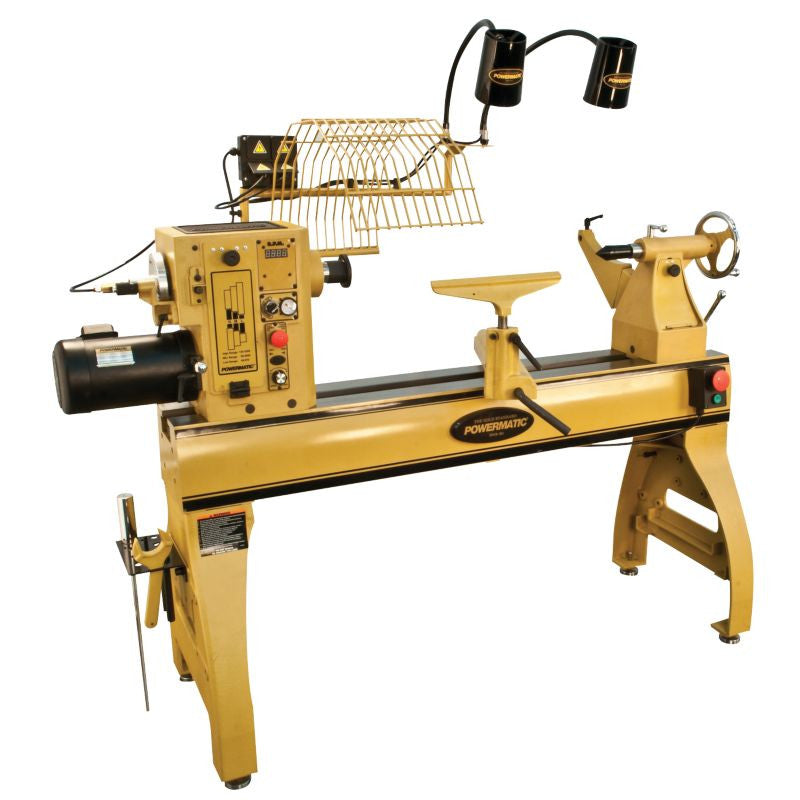

Powermatic 4224B Wood Lathe
Free Shipping to Commercial or Residential Address! This Powermatic lathe is subject to MAP pricing. Have you noticed that most web sites advertise this item at the same price. MAP pricing means we have to advertise this at a MINIMUM ADVERTISED PRICE set by Powermatic. With most manufacturers we are free to sell the product for any price, we just need to abide by the manufacturer's minimum advertised pricing policy.
Wood Lathe Description:
The Powermatic wood lathe Model 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Powermatic 4224B Lathe Features:
- Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
- Vacuum system provides quick method of chucking bowl blanks
- 15-amp quad receptacle for easy reach of powered accessories
- Two 100W task lamps provide ideal lighting
- Air nozzle with quick connect for clearing dust/chips
- Set of dead centers which hold a spindle for visual comparison
- Laser etched quill is self ejecting.
- Two position mount for the optional bed extension
- Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Attached tool caddy allows convenient access to centers, wrenches, etc.
- Tailstock has internal storage for additional accessories
- Chrome trimmed handwheels are ergonomic for a comfortable feel
- Magnetic-backed remote on/off switch can be moved anywhere on the machine
Wood Lathe Specifications:
Part Number | 1794224K |
Swing Over Bed | 24 " |
Swing Over Tool Rest Base | 21 " |
Distance Between Centers | 42 " |
Outboard Turning | 88 " |
Speeds | 40-3500 RPM |
Headstock Taper | MT-2 |
Spindle Nose | 1 1/4 " x 8 TPI |
Hole Through Spindle | 5/8 " |
Tailstock Taper | MT-2 |
Hole Through Tailstock | 3/8 " |
Ram Travel | 4½ " |
Centerline of Spindle to Floor | 44 " |
Spindle Taper | MT-2 |
Headstock Movement | full length of bed |
Indexing Positions | 98 |
Style | leg stand |
Bed Construction | cast iron |
Spindle Speeds | 40 - 3500 |
Motor Power | 3 HP |
Motor Voltage | 220 V |
Prewired Voltage | 220 V |
Motor Phase | 3 Ph |
Web Description | 4224B Lathe 3HP, 1/3Ph, 220V |
Model Number | 4224B |
Brand | Powermatic |
Overall Dimensions | Assembled 83"L x 36"W x 65"H |
Height | 31.5 inch |
Width | 27 inch |
Length | 68 inch |
Net Weight | 948 pound |
