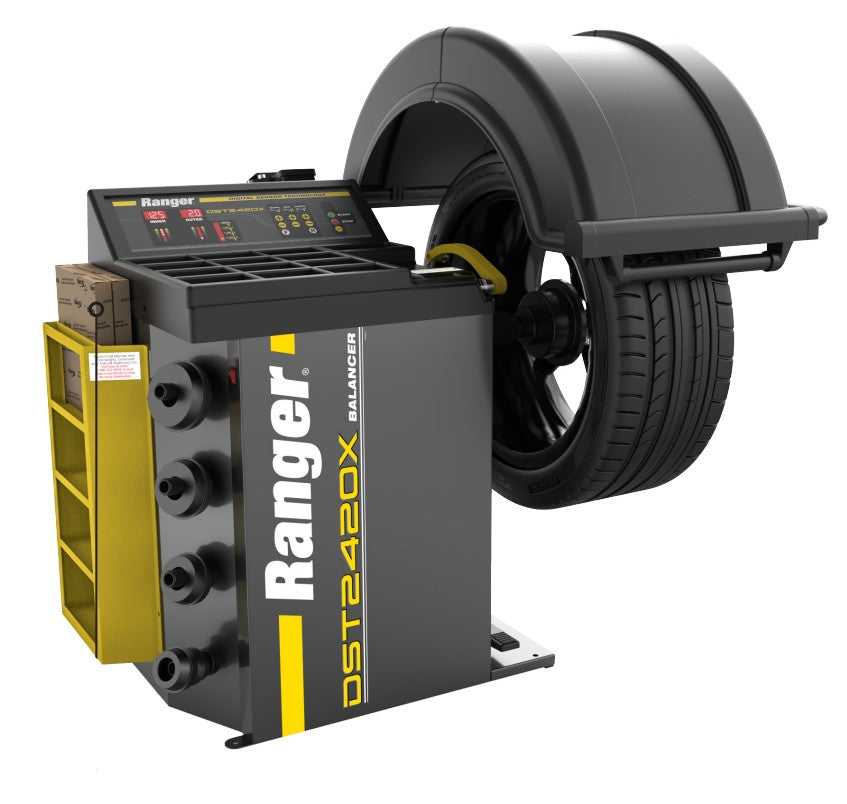

Ranger DST-2420 Heavy-Duty Digital Wheel Balancer

The Ranger DST-2420 wheel balancer handles wheels up to a 30” diameter. It is a highly accurate and dependable no frills balancer that features our proprietary Digital Sensor
Technology for critical reliability and repeatability. From one-bay shops to high-volume tire stores, the DST-2420 is built with a toughness that puts out perfectly balanced
wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero tolerance performer that features our proven Direct-Axis drive system, accurate to
within hundredths of an ounce, ensuring wheels are balanced vibration-free.

The DST-2420 automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration on the planet, as well as brightly displayed LEDs that mark
the exact amount and location in just six seconds. A full menu of time-saving features, including Dynamic, Static, and Performance Alloy settings, allows you to balance OEM wheel configurations and performance
wheels with minimal effort and speed.

Specifications

• Motor | 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph
• Cycle Time | 6 - 9 Seconds (avg.)
• Balancing Modes | Dynamic / Static / 3-Alloy
• Drive System | Belt Drive
• Wheel Braking | Automatic / Electronic
• Cones Included | 3 Standard / 1 Truck
• Max. Tire Diameter | 47” (1,194 mm)
• Max. Tire Weight | 145 lbs. (65 kg)
• Wheel Diameter Capacity | 10” - 24” (254 mm - 610 mm)
• Wheel Width Capacity | 1.5” - 18” (38 mm - 457 mm)
• Balancing Increments | 0.25 or 0.01 oz
• Balancing Speed | 180 RPM
• Accuracy | +/- 1 gram (.035 oz.)
• Resolution | 0.01 ounce, 1.4°
• Shipping Weight 356 lbs. (161 kg)

Standard Features:

• Top positioning weight locator
• Inside & outside measuring
• Millimeter / inches selection
• Ounce / gram selection
• Manual wheel offset distance setting
• Self-calibration function
• Auto start when hood is lowered
• Wheel holding manual brake pedal
• Truck cone / spacer ring adapter set
• Wheel calipers
• Rear cone mount spring
• No-mar rear cone mount pressure cup
• Quick-release & mount hub nut

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
