**Replaces model R23AT!

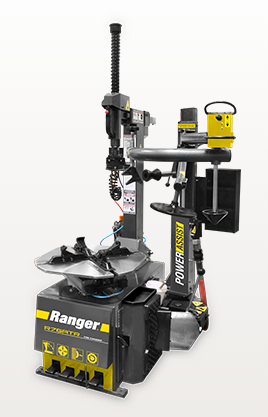

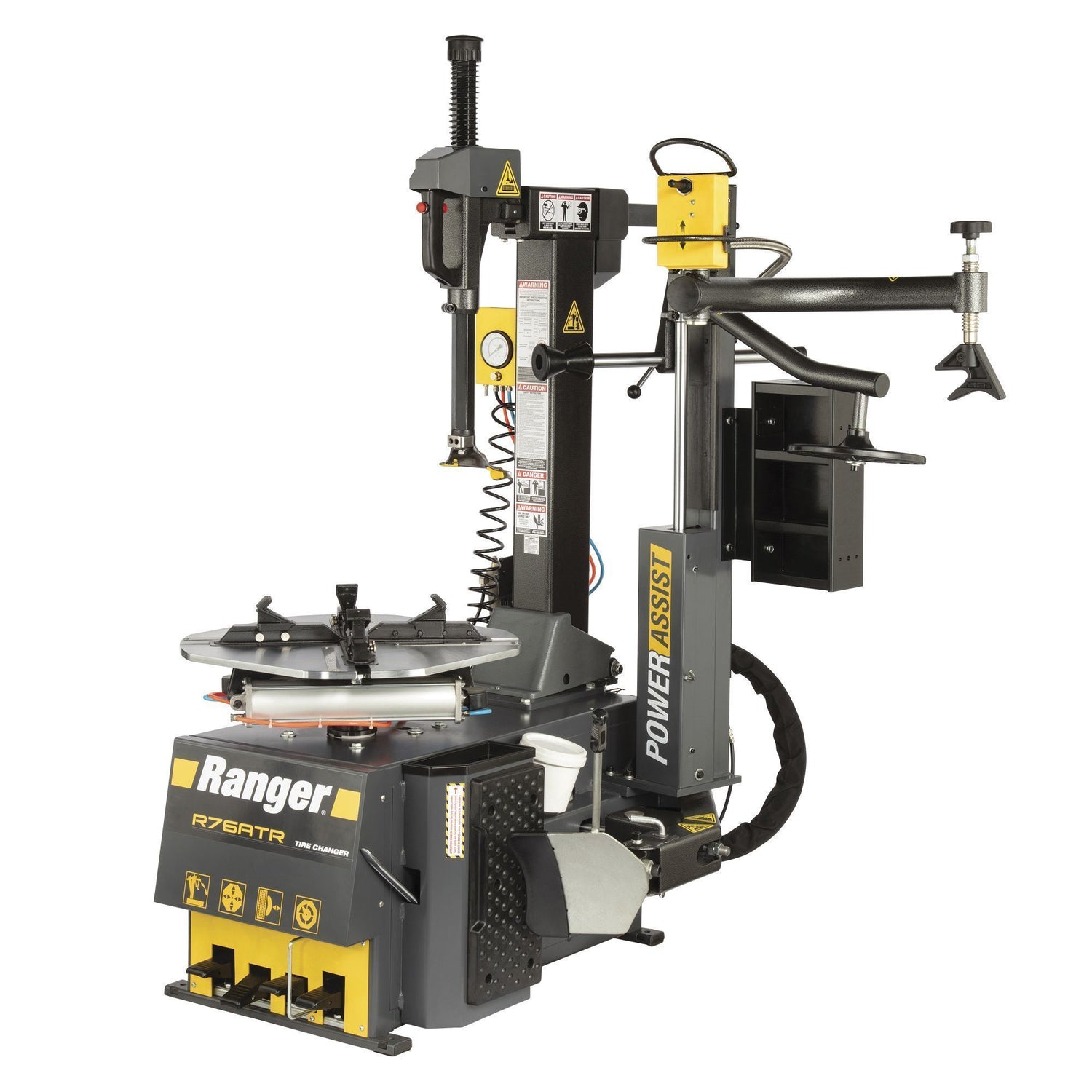

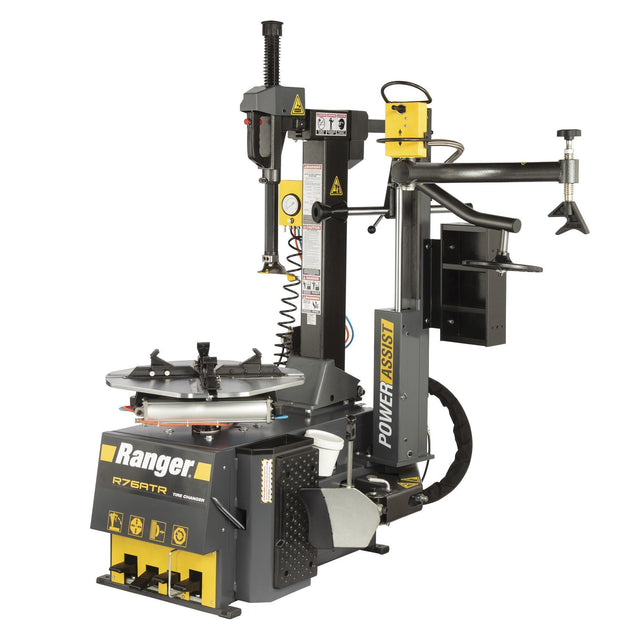

The R76ATR is a brilliant time saver. Its tilt-back tower allows you to operate different tire-and-wheel combos without adjusting the duck head, and the swing-arm design with tower assist ensure stiff sidewalls are never a problem. RimGuard clamps extend 10" – 30" for maximum versatility.

Easier bead lubrication
A geometric tabletop makes bead lubrication easy. Operators are able to visibly inspect the lower bead during tire mounting and inflation.

Bead-breaker design
A completely new and proprietary bead-breaker design features bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. A 100% stainless steel cylinder body means no more worrying about moisture contamination from corrosion. Other exclusive design features include a multi-axis, adjustable blade for multi-angle tire capacity, a large, dual-flange axle that eliminates blade flex and premature failure, and adjustable blade settings that help accommodate a larger variety of tire and wheel combinations.

Enhanced bead-breaker ​blade
Enhanced bead-breaker ​blade features rugged box frame construction that increases the mechanical strength, as well as service life and overall performance. A large rubber bump-stop assures smooth return to help reduce shock loading and minimize wear on the pneumatic cylinder, guides and associated moving parts.

Balanced flywheel
A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. In essence, well-balanced flywheels keep our tire changers running smoothly for years of zero or low-maintenance operation.

Simple foot-pedal control
Rather than heavy, clunky cast iron, we make our foot pedals from forged steel that is durable enough for daily use in fast-paced shops and tire centers. The snap action spring return offers extremely accurate and safe operation, while the foot-pedal control valves are complete with multi-link rod connections for non-binding plunger movement and precise bilateral control.

Right-side tower drop-center design
Right-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center area of the wheel for swift, precise mounting. A single lower-bead lifting disc can be used to unseat stubborn lower beads or to elevate tires for tool placement. A power-drop top bead assist roller helps hold difficult top beads in place during removal and in installation of tough sidewall tires. These important tire shop tools dramatically reduce the effort required to change difficult, low-profile tires and help minimize operator fatigue. Upfront trigger control and articulating arm allow for variable tire and wheel configurations. A heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for maintenance-free operation.

Tilt-back tower design
Ranger uses a tilt-back tower design for this tire changer because a tilt-back tower offers more ground clearance, as well as easier removal and inflation of tires. If you’re using like sets of tires and wheels, a pneumatically locked tool head will remain in place on the tower return, allowing for more rapid setup on your next job.

Advanced drive belt system
The drive belt on the R76ATR tire changer is crafted with convex sidewalls that structurally carry and disperse stress (wear) throughout the unit’s structure. Oil, weather, age, etc. do not affect belt performance, because flex-bonded cords and flex-weave covers protect the system at all times.

Stainless steel and aluminum pneumatic cylinders
All pneumatic cylinders prevent the tire changer from overly vibrating, reducing friction and contributing to the long lifespan of the equipment. End-of-stroke cushions are included to extend the life of all seals, as well as the wear band and piston rods. And of course, the entire cylinder system on the tire changer is self-lubricating and low-maintenance throughout the course of ownership.

Multi-function mount and demount head
The equi-dimensional shape of the hardened steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting/demounting and prevents expensive tire damage. Additionally, a nylon tool head comes standard. Protect your customers' expensive alloy rims and wheels from marring or damage when mounting with our durable nylon tool head that comes as a standard accessory.

Spring-assisted tool shaft
In order to prevent wheel damage, Ranger’s mount/demount tool heads feature hardened-steel horizontal outrigger support arms, as well as a rigid 45 mm spring-assisted hexagonal vertical tool shaft. These standard features keep the tool head in the precise position you set it during service.

Guide bearings for all moving parts
Ranger takes special care of all moving parts in our tire changers. Linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm’s hardened lower roller guide assists in maintaining an even-tempo for the arm’s oscillating movements. Durable rubber bump-stops ensure a safe return during tilt-back operations and lessen shock loading. Wear is minimal on tower guides and other moving parts.

Foot-controlled tire inflator
Tire changers require two hands to operate, so we keep both of your hands free with our easy-to-use foot pedal tire inflator. A push-button air pressure dump valve is integrated into the unit, letting you release tire pressure as necessary.

TurboBlast bead seating
Ranger’s TurboBlast bead seating system efficiently shoots a burst of air between the tire and rim, thus seating beads quickly without doing damage to the tire structure. For a more controlled air discharge, the system features a nylon discharge barrel with a contoured tab that locks against the rim.

Motorcycle clamps (optional)
If your shop services motorcycles, or you’d like to expand your business, Ranger offers an optional series of turntable clamps specifically designed to cater to motorcycle wheels and tires.

Features

• 4 Clamps (Internal / External)
• Dual Pneumatic Cylinders
• Adjustable Pneumatic Blade
• Tilt-Back Tower Design
• Vertical Shaft / Tool Head Positioning
• Inflation System
• Inflation Gauge & Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tire Iron
• Alloy-Steel Mount-Demount Head
• Nylon Mount-Demount Head
• Large Soap Bucket
• Soap Brush
• TurboBlast Bead Seating System
• Tool Tray / Bin Storage
• Motorcycle Turntable Clamps (optional)

Style

• Style: Tilt-Back Tower Design

Assist

• Assist Type: Single-Tower Assist

Specification

• Motor | 3 HP (220 VAC 50-60 HZ)
• Drive System Type | Electric / Hydraulic
• Air Requirement | 110-175 PSI (8-12 BAR)
• Wheel Clamping Method | 4 Clamps - Internal / External
• Table Clamping System | Dual Pneumatic Cylinders
• Bead Breaking System | Adjustable Pneumatic Blade
• Tower Design | Tilt-Back
• Power Assist Tower(s) | Single / Right-Side
• Bead Lifting Roller(s) | Single / Right-Side
• Upper Bead Assist Roller | Single / Right-Side
• Vertical Shaft / Tool Head | Pneumatic / Locking
• Powerful Bead Seating System | TurboBlast
• A - Inside (Wheel) Clamping Range | 10” – 30” (254 mm - 762 mm)
• B - Outside (Wheel) Clamping Range | 8” – 26” (203 mm - 660 mm)
• Maximum Rim Width | 15” (381 mm)
• Shipping Weight | 920 lbs. (417 kg)
• Shipping Dimensions | 50'' x 50'' x 68'' (1,270 mm x 1,270 mm x 1,727 mm)
• Recommended Footprint | 60" x 50" x 78" (1,524 mm x 1,270 mm x 1,981 mm)
