Ranger  |  SKU: RAN5150315

Ranger RIC-4716 4-Bar Tire Inflation Cage

$975.00
Contact Us

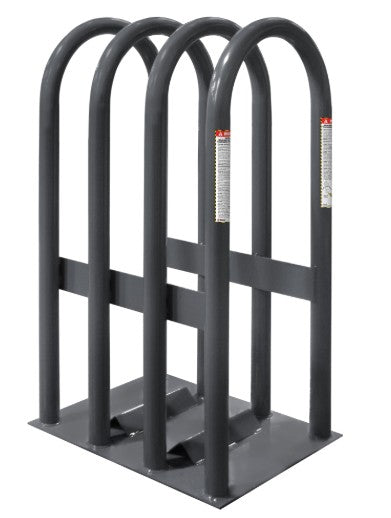

Ranger RIC-4716 4-Bar Tire Inflation Cage

The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire. Tire explosions are deadly, and only a ruggedly constructed tire cage can prevent catastrophic damage in a worst-case scenario.

The Tire Inflation Cage You Trust

The RIC-4716 inflation cage is designed using 2-3/8” diameter, high-yield, seamless steel tubing with expansion properties to ensure strength, durability and safety. The gradual upper-arched mandrel bent tube design yields maximum space and is engineered to withstand and contain wheel and tire projectiles under extreme tire ruptures, preventing potential injuries or deaths. The RIC-4716 stands 49.5" tall and 21” wide and features four welded-steel bars in order to meet the demands of all wheel service shops. It can handle tires with a maximum width of 16" and maximum diameter of 47", delivering full-capability performance. A solid-steel welded-steel base features a full-width angle-iron wheel cradle to keep the wheel safely contained within the inflation cage during all inflation procedures.

IMPORTANT NOTE: Exploding tires have a high potential for severe injury and death. Tire inflation safety cages are a mandatory precaution for safe tire inflation. Tire inflation cages provide valuable protection and exceed the OSHA Standard 29 CFR 1910.177 for servicing multi-piece and single-piece rim wheels. ALWAYS follow all warning and product instructions when using any inflation cage in order to prevent potential injuries or deaths.

The checklist below (click link) covers regulations issued by the U.S. Department of Labor, Occupational Safety and Health Administration (OSHA) under 29 CFR 1910.177.

Features

  • Accommodates hub assemblies up to 9.5” wide
  • 2-3/8” diameter, high-yield, seamless steel tubing
  • 4-Bar welded-steel construction
  • Solid-steel welded-steel base
  • Four tubular steel base frame supports keeps cage elevated off the floor to prevent rust and corrosion
  • Full-width angle-iron wheel cradle

Specification

  • Max Tire Width 16” (406 mm)
  • Max Tire Diameter 47” (1,194 mm)
  • Height 49.5” (1,257 mm)
  • Width 21” (533 mm)
  • Depth 27” (686 mm)
  • Shipping Dimensions 30'' x 24'' x 60'' (762 mm x 609 mm x 1,524 mm)
  • Shipping Weight 256 lbs (116 kg)



  • This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
