Ranger's "Jiggle Jack" Simplifies Jack Stand Positioning

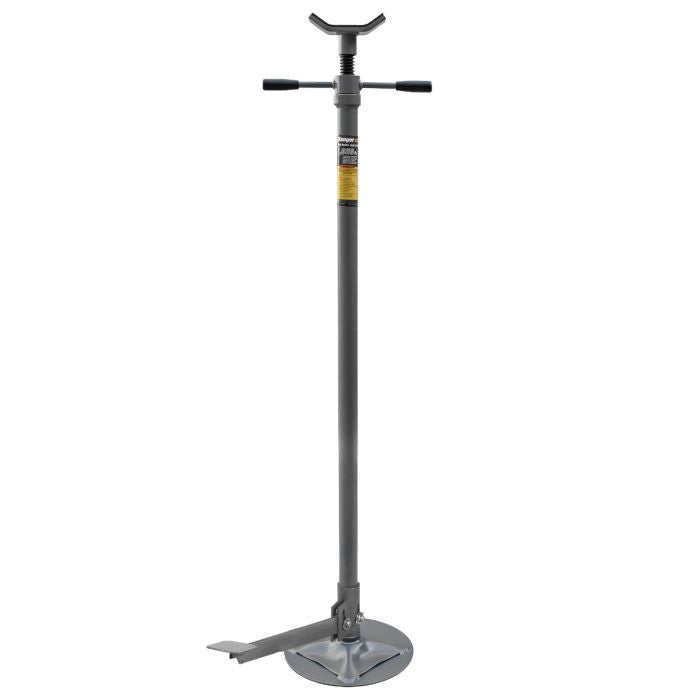

The RJS-1TF high-reach jack stand is ideal for holding drivetrain or exhaust components in position beneath raised vehicles. It’s similar to the RJS-1T high-reach jack stand but features Ranger’s own foot pedal technology that helps place the stand exactly where it needs to be during service. This ultra-rugged foot pedal lets you "jiggle" components for quick alignment (that’s why we call it the Jiggle Jack). Without this feature, it can be tricky to get jack stands placed exactly where they need to be, especially when maneuvering under a car lift. This revolutionary foot pedal feature lets you stay upright and make all your vertical adjustments by foot, so your hands are free to horizontally position the lift.

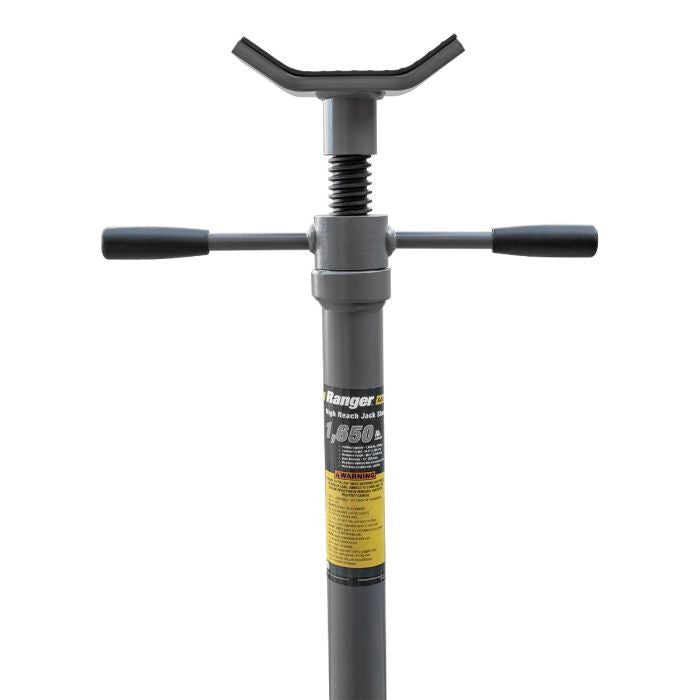

The RJS-1TF high-reach jack stand is your perfect in-shop helper for stabilizing a lifted vehicle. The ACME screw adjusts to heights between 54.5" and 80.5," and the thick rubber on the stabilization pads provides maximum support. High-reach stands are a staple in any shop that performs engine, transmission or exhaust removals on vehicles raised on a two-post lift. When heavy equipment is removed from cars and trucks, the center of gravity shifts, which results in less-than-perfect balance, or even worse, catastrophic tipping. These stands hold the vehicle in place and prevent damage to you, the car lift and the vehicle. They’re also a smart solution for reaching tricky undercarriage components with a four-post lift. Just place the stands between the runways while the vehicle is lifted and lower the runways. The stands will support the vehicle up to their rated capacities. You can always add more stands to increase overall weight capacity.

Ranger high-reach jacks are just the tool to keep everything steady. The wide base plate combines with lightweight efficiency, so your jack stand is as stable as it is mobile.

Specifications

Specification

• Holding Capacity: 1,650 lbs. (748 kg)
  Lowered Height: 54.5" (1,382 mm)
  Maximum Height: 80.5" (2,045 mm)
  Base Dimensions: 12" (305 mm) diameter
  Shipping Weight: 36 lbs. (16 kg)
  Shipping Dimensions: 53" x 13" x 3" (1,346 mm x 330 mm x 76 mm)

• Some rural and remote areas may have a 5% surcharge added to the total price. Click here to see if the RATZ fee applies to you. This jack stand ships by truck and you will need a way to get it off the truck!  Residential delivery is $40.00 extra.  RATZ fee will not be shown in the total when you have completed checkout.
