ReelCraft 5600 OMP – 3/8 in. x 30 ft. Premium Duty Hose Reel

Series 5000 reels are durable and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery.

Features:

Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality. All steel components are powder coated for maximum corrosion resistance.
Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
Quiet speed latch – The latch cam is designed for reliable quiet operation.

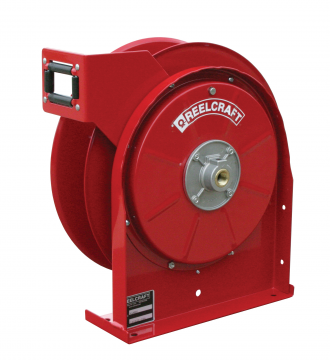

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

Specifications:

• Weight | 24 lbs
• Series | 5000
• Hose I.D. | 3/8"
• Hose O.D. | 0.690"
• Hose Length | 30'
• Pressure | 3000 psi
• Inlet | 3/8" NPT(F)
• Reel Outlet | 3/8" NPT(F)
• Hose Included | No
• Max Temperature | 210 °F
• UPC | 699567000860
• Warehouse | California

Dimensions:

• A 14.375"
• B 14.25"
• C 9.75"
• D 2.5"
• E 6.125"

Fluid Path Materials

• Shaft Material Steel

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | Reelcraft collects sales tax on orders shipped to California. These charges will NOT be applied at the checkout. You will be contacted before shipment if extra charges apply.
• MADE IN THE USA
• *** Actual Product May Differ From Image Shown ***
• HOSE NOT INCLUDED!
