ReelCraft 7800 OMP – 1/2 in. x 50 ft. Heavy Duty Hose Reel

Reelcraft's Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Consult Reelcraft for other products and hoses. Guide arm adjusts to 7 positions.

Features:

• Reinforced steel – The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight.
• Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
• Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.

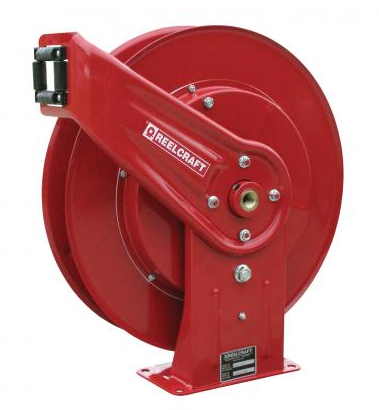

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

Specifications:

• Weight | 43 lbs
• Series | 7000
• Hose I.D. | 1/2"
• Hose O.D. | 0.820"
• Hose Length | 50'
• Pressure | 3000 psi
• Inlet | 1/2" NPT(F)
• Reel Outlet | 1/2" NPT(F)
• Hose Included | No
• Max Temperature | 210 °F
• UPC | 699567001331

Dimensions:

• A 20.25"
• B 19.75"
• C 7.8125"
• D 3.875"
• E 7"

Fluid Path Materials:

• Shaft Material Steel

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | Reelcraft collects sales tax on orders shipped to California. These charges will NOT be applied at the checkout. You will be contacted before shipment if extra charges apply.
• MADE IN THE USA
• *** Actual Product May Differ From Image Shown ***
