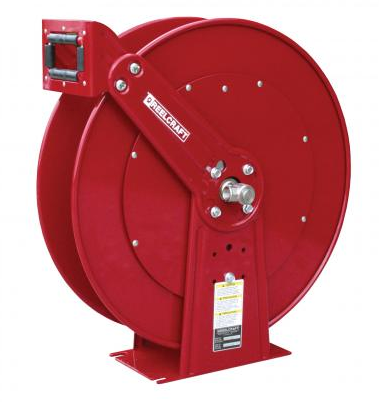

ReelCraft 83000 OLP – 3/4 in. x 50 ft. Heavy Duty Hose Reel

Reelcraft's Series 80000 and D80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications. Series D80000 reels are also supplied with Reelcraft's ball-bearing style swivel.

Features:

• Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
• Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
• Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.

Specifications:

• Weight | 77 lbs
• Series | 80000
• Hose I.D. | 3/4"
• Hose O.D. | 1.075"
• Hose Length | 50'
• Pressure | 500 psi
• Inlet | 3/4" NPT(F)
• Reel Outlet | 3/4" NPT(F)
• Hose Included | No
• Max Temperature | 210 °F
• UPC | 699567001652

Reel Dimensions:

• A 25.375"
• B 24"
• C 8.125"
• D 10.5"
• E 10"
• F 6"

Fluid Path Materials:

• Shaft Material Aluminum

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | Reelcraft collects sales tax on orders shipped to California. These charges will NOT be applied at the checkout. You will be contacted before shipment if extra charges apply.
• MADE IN THE USA
• *** Actual Product May Differ From Image Shown ***
