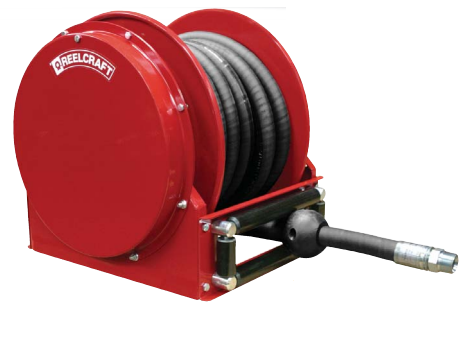

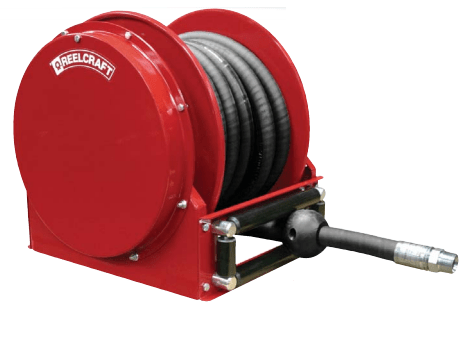

Ultimate Duty Low Profile Reel

Series SD10000 hose reels are designed to facilitate larger diameter 3/4" and 1" hose up to 50 ft. They feature a high quality external drive spring and a heavy gauge all-bolted together frame. This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited.

Features:

• Robust roller guides high impact UHMW composite roller guides have outstanding wear and corrosion resistance.
• Containerized external drive spring is easily and safely serviced.
• Ductile iron fluid path is strong and reliable.
• Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life.

Reel Specifications and Dimensions:

• Part Number | SD14050 OVP
• Series | SD
• Weight (lbs) | 125
• Hose I.D. (in) | 1"
• Hose O.D. (in) | 1.496
• Hose Length (ft) | 50
• Pressure (psi) | 250
• Hose End (in) | 1 NPT(M)
• Inlet (in) | 1 NPT(F)
• Reel Outlet (in) | 1 NPT(F)
• Hose Included | Yes
• Max Temperature (°F) | 210
• UPC | 699567008514

Additional Features:

• A 18.25"
• B 19.125"
• C 14"
• D 13.25"
• E 20.75"
• F 10"

Fluid Path Materials

• Seal Type | Aflas
• Swivel Material | Steel
• Shaft Material | Steel
• Gooseneck Material | Ductile Iron

PLEASE NOTE, IMPORTANT INFORMATION:

• SALES TAX | Reelcraft collects sales tax on orders shipped to California. These charges will NOT be applied at the checkout. You will be contacted before shipment if extra charges apply.
• MADE IN THE USA
• *** Actual Product May Differ Than Image Shown ***
