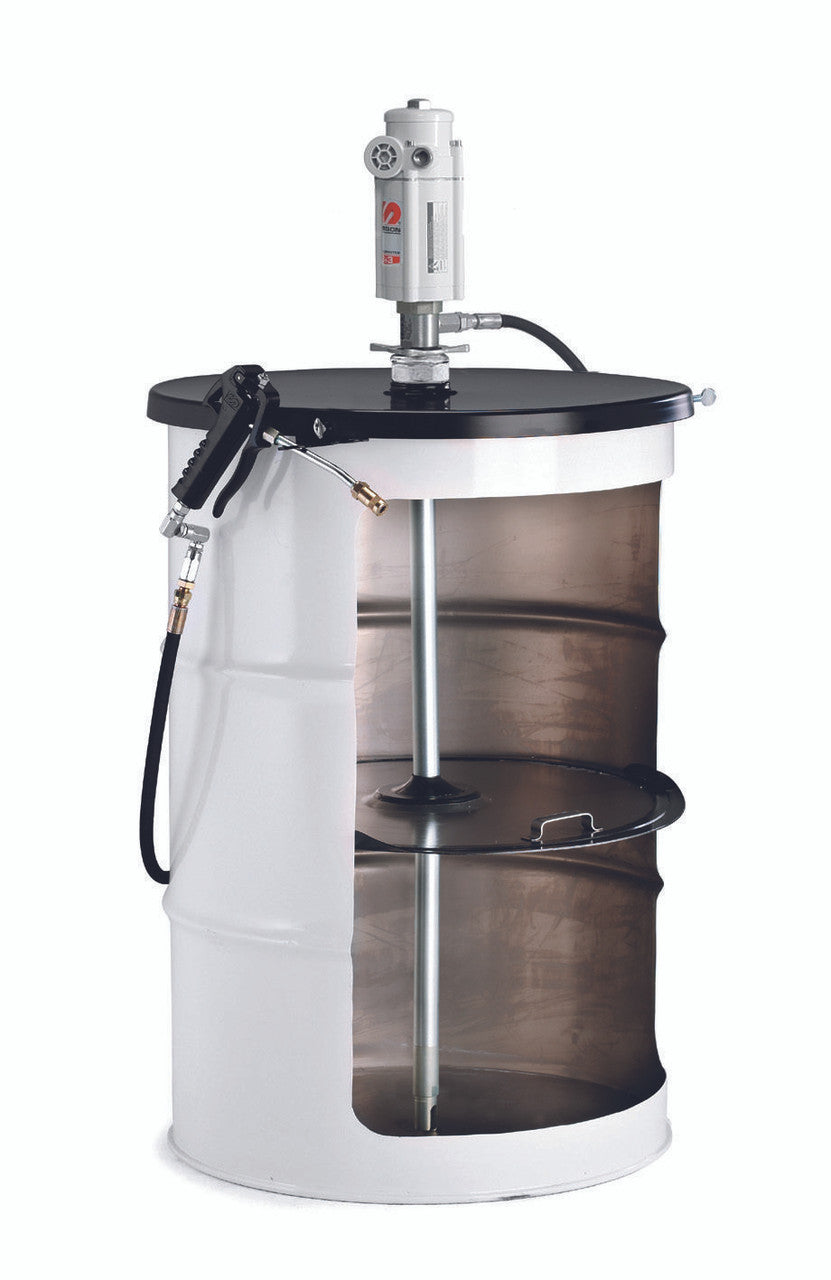

Samson 305 101 PumpMaster3 55:1 400 lb 20' Stationary Grease Pump Package

Samson offers a range of high pressure and high delivery grease pumps to handle a wide variety of applications. This pump offering fits original container sizes, from small pails to drums, totes and specialty built tanks, and covers applications from mobile and portable units to large distribution systems. Samson’s grease pumps are designed to provide years of dependable service. The in-line balanced design assures that maximum pump efficiency. All Samson pumps have a double acting design, pumping product on both the upstroke and downstroke. An effective priming piston provides positive priming, even when used with high viscosity or tacky greases. A hardened foot valve minimizes pump damage due to dirt. A corrosion proof air motor design tolerates moisture in compressed air.

*Pump packages include all hoses and adapters required for connecting an oil pump to the air supply, and oil dispense line.  Samson does not provide wall mounting hardware (nuts, bolts, and anchors) for lube packages.

Includes:

• Pump | 304
• Follower Plate | 966
• Drum Cover | 1938
• Delivery Hose | 874 000 (20')
• Grease Handle | 413 077
• Grease Handle Swivel | 1105 (z-swivel)
• Quick Air Nipple 1/4" | 930F04
• Quick Air Coupler 1/4" | 933M04
• 1/4" Mini F/R w/Gauge | 955

Pump Specifications:

• Pump Pressure Ratio | 55:1
• Continupus Duty Flow Rate | 0.7 lb/min (300 g/min)
• Maximum Free Flow Rat | 1.2 lb/min (540 g/min)
• Air Pressure Operating Range | 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure | 7,700 psi (550 bar)
• Air Motor Effective Diameter | 2-3/4" (70 mm)
• Air Motor Stroke | 1-1/2" (33 mm)
• Air Consumption | 5.8 scfm (165 NL/min)
• Air Inlet | 1/4" NPTF
• Fluid Outlet | 1/4" NPTF
• Wetted Materials | Aluminium, Steel, NBR, PTFE
• Noise Level | 85 dB
• Application | 35 lb pail, 120 lb keg, 400 lb drum
• Simultaneous Dispense Points | 1 - No Reels
• Max. Line Length | 50' (15 m)
• Pump Description | Utility High Pressure
• Markets Served | Light Industrial, Service Shops, Agriculture
