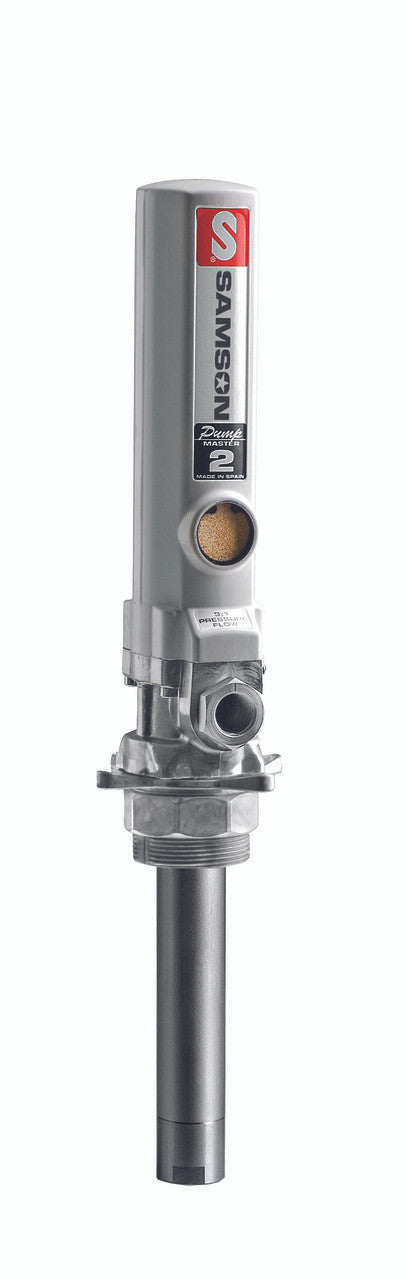

Samson 353 120 PumpMaster 2 3:1

Double acting air operated medium pressure pumps for dispensing lubricants from mobile units, oil distribution packages and small systems. Pumps include height 2″ NPTM adjustable bung adaptor for tank or drum bung mounting. Built in pressure relief port for optional (PN 609 007) pressure relief valve.

Fluids Handled:

• Synthetic and mineral based oil
• Transmission fluid
• Hydraulic oil
• Gear lube

Markets Served:

• Service Shops
• Agriculture
• Marine
• Auto dealers
• Fast Lube centers
• Mining equipment maintenance

Specifications:

• Pump Pressure | Ratio 3:1
• Continuous Duty Flow Rate | 2.7 gpm (10 l/min)
• Maximum Free Flow Rate (2) | 9.3 gpm (35 l/min)
• Air Pressure Operating Range | 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure | 420 psi (30 bar)
• Air Motor Effective Diameter | 1 1/2" (35 mm)
• Air Motor Stroke | 3" (75 mm)
• Air Consumption (1) | 6.4 scfm (180 NL/min)
• Air Inlet | 1/4" NPTF
• Fluid Inlet | 1" NPTF
• Fluid Outlet | 3/4" NPTF
• Wetted Materials | Aluminium, Steel, NBR, PTFE
• Noise Level (3) | 80 dB
• Application | Stub pump, 16 gal drum pump, 55 gal drum, 257/500 tank, 60" tank
• Simultaneous Dispense Points | 1
• Max. Line Length | 200' (60 m)
• Pump Description | Utility Medium Pressure

(1) Air consumption with 90 psi (6 bar) air inlet pressure and 200 cycles per minute
(2) Maximum free delivery at 100 psi (7 bar)
(3) Maximum noise level measured at 3' (1 m) from the pump, 100 psi (7 bar) air pressure and free delivery
