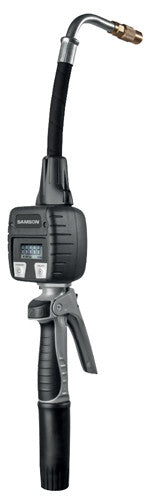

Samson 365 534 EC8 Series Digital Dispense Valve Flexible Outlet with 90 Degree Angled Tube w/ Quarter Turn Non-drip Tip

Samson digital control valves are used at the end of the hose assembly for measured dispensing lubricants and antifreeze solutions.

Fluids Handled:

• Synthetic and mineral based oil
• Gear Oil
• Hydraulic oil and fluids
• ATF
• Antifreeze solutions

365 534 | Oil Control Digital Valve Flex 90° 1/4" Turn No-drip Tip

Markets Served:

• Fleet service
• Lube Trucks
• Mining equipment maintenance
• Car and Truck Dealerships
• Fast Lube
• Maintenance Shops

Features:

• Extensively and rigorously field tested. Reliable performance.
• High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
• Sealed battery compartment and isolated electronic register for extended life.
• Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
• Rough TPE boot surrounds the entire meter for even greater durability.
• Replaceable AAA batteries.

Specifications:

• Maximum Free Flow Rate | 8 gal/min (30 l/min)
• Maximum Working Pressure | 1,450 psi (100 bar)
• Fluid Inlet | 1/2" NPTF
• Fluid Outlet | 1/2" NPTF
• Accuracy | +/- 0.5%
• Power Source | 2x "AAA" 1.5 Batteries
• Wetted Materials | Acetal, Aluminium, Stainless Steel, NBR, Zinc Plated Steel, TPU, Polyamide
