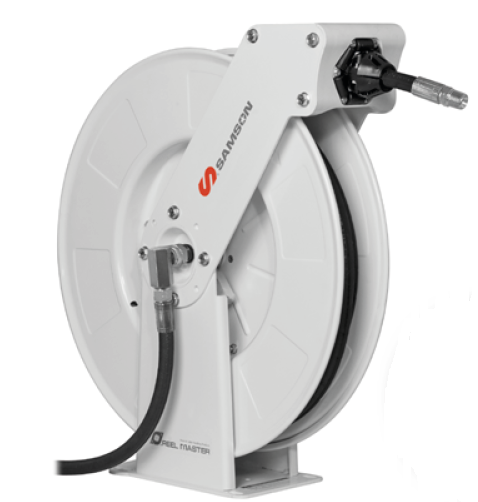

Samson 504 351 Full Metal Reel HD Double Pedestal Hose Reel

The 504 Series is replacing the 1650 Series reels and comes with numerous enhancements....

• Pressure balanced swivel mounted inside the metal arm
• Re-positioning of the latch mechanism to the arm for easier servicing
• Six roller hose guide
• Fully ported fluid path
• Spool mounted on sealed ball bearings
• Full metal latching mechanism
• Internal hose guide and clamp
• Includes the inlet hose

.... as well as some popular features that remains the same.

• Same narrow footprint
• Same mounting bolt pattern
• Sual arm, all metal construction
• Same heavy duty spring
• Low, medium and high pressure models
• 1/4" hose end for low pressure reels are available

Features:

• Very tough construction able to stand regular use and abuse in Intensive Duty applications
• Fatigue resistant steel spring for years of durable performance. Even load when pulling and recoiling the hose
• Fully ported shaft and swivel
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life
• Large latching area for easier operation
• Hose guide arm can be placed in different positions to accommodate any method of mounting
• Narrow footprint allows mounting more reels on the same surface
• Hose reels with hose include 30" inlet hose

Fluids Handled:

• Water
• Antifreeze and windshield wash solution
• Synthetic and Mineral Oils
• Grease

Markets / Applications:

• Car and truck dealers
• Service shops
• Fleets
• Lube trucks
• Mining and construction
• Railroad and mass transit
• General manufacturing

Mounting:

• Floor
• Wall
• Ceiling
• Tank
