Samson | SKU:
SAM554510
Samson 554510 Diaphragm Pump
$2,677.50
Unit price
/
Unavailable
Samson 554510 Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

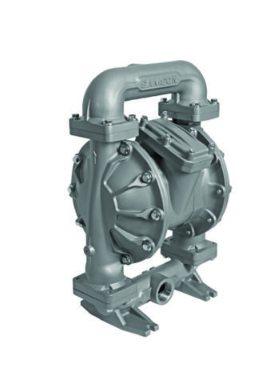

Samson UP20 Diaphragm Pump
The NEW UP 20 diaphragm features conventional flow design combined with unique pivoting air valve, fast action air valve for increased delivery, and reliable performance.
Features:
- Frictionless pivoting air valves
- Bolted cover design
- Long life diaphragms
- For very large volume transfer, de-watering, and fluid evacuation
Fluids Handled:
- Oils
- Antifreeze
- Diesel
- Waste Oil & Antifreeze
Specifications:
- Pump Pressure Ratio | 1:1
- Maximum Free Flow Rate | 170 gal/min (643 l/min)
- Maximum Suction Lift | 26' (8 m)
- Minimum Air Pressure | 22 psi (1.5 bar)
- Maximum Air Pressure | 115 psi (8 bar)
- Max Size Solid Suspension | 1/4" (6 mm)
- Air Inlet | 3/4" NPTF
- Fluid Outlet | 2" NPTF
- Fluid Inlet | 2" NPTF
- Wetted Materials | Aluminum, Hytrel, Viton
