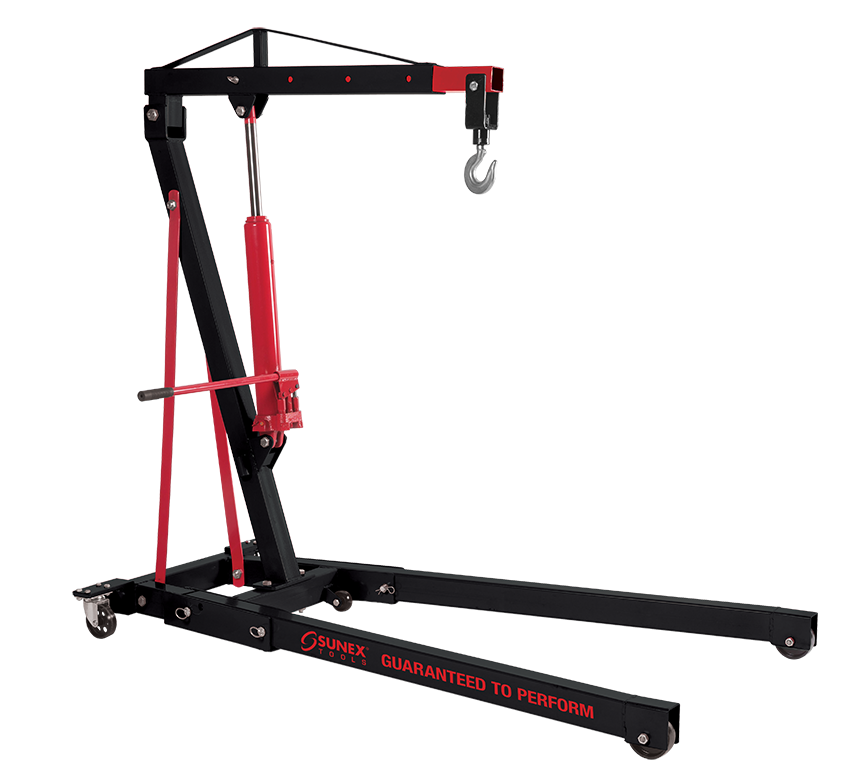

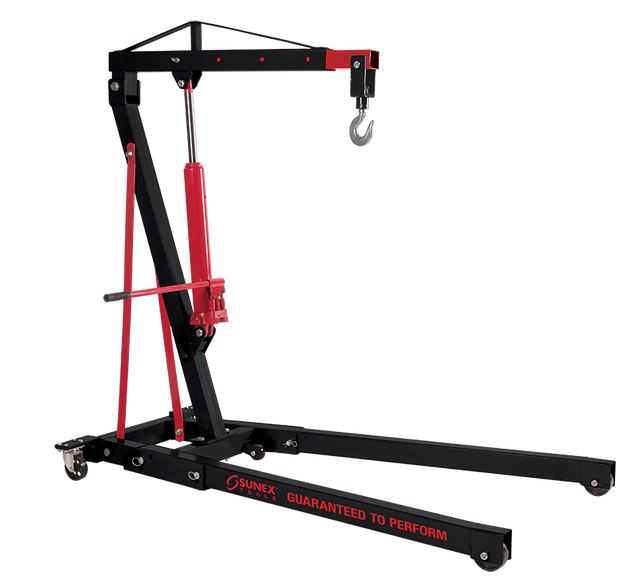

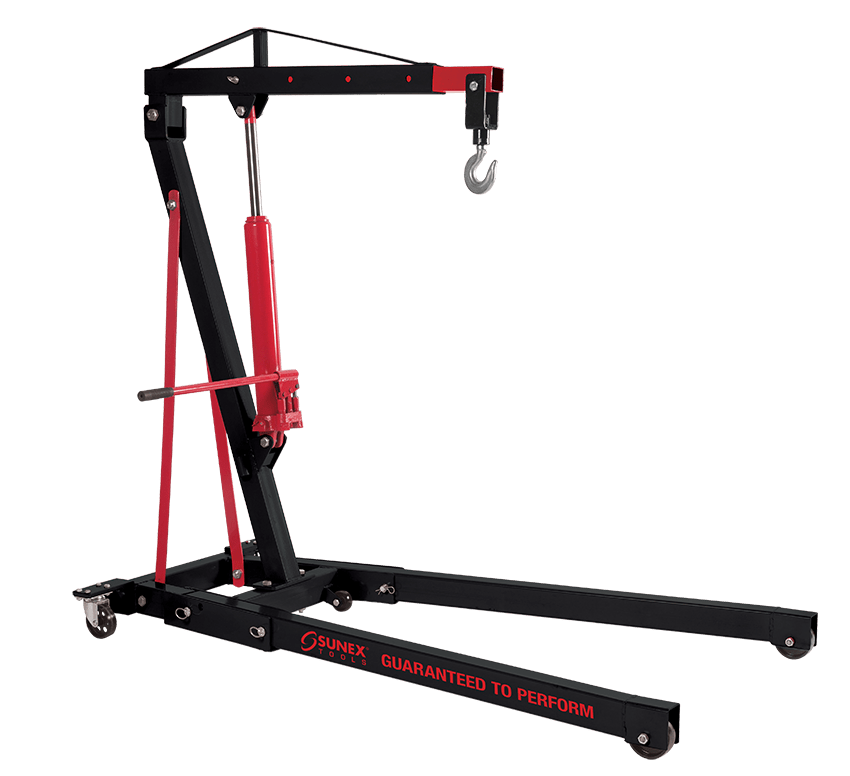

Sunex 5222 2 Ton Engine Crane

The Sunex 5222 Engine Crane has a dual pump piston design and is 25% faster than other single pump designs. It also contains a folding ability and is able to be stored away in small area.

Features:

• Dual pump pistons rapidly reach max height 25% faster than single pump designs
• Low profile 4.7 inch legs designed to fit under wide range of vehicle frames including sports cars
• 4 boom positions adjust for optimal reach based on required capacity
• Drop forged steel hook swivels 36 degrees for ease of use and safety during operations, while chain-less design eliminates sway during lifting
• Space saving design folds to conveniently store away in small footprint

Specifications:

• Model Number: 5222
• Capacity (tons) Boom Positions:
• 1 | 0.5
• 2 | 1
• 3 | 1.5
• 4 | 2
• Min. Height (in.) Boom Positions:
• 1 | 0
• 2 | 0
• 3 | 5.5
• 4 | 11.75
• Max. Height (in.) Boom Positions:
• 1 | 96.5
• 2 | 90.5
• 3 | 84.5
• 4 | 78.5
• Boom Length (in.) Boom Positions:
• 1 | 48
• 2 | 41.5
• 3 | 34
• 4 | 27
• Base Width Open Back/Front (in.): 34 / 35.5
• Base Length Open (in.): 69.5
• Base Width Stored Back/Front (in.): 24 / 34
• Base Length Stored (in.): 21.5
• Shipping Weight (lbs.): 269

PLEASE NOTE, IMPORTANT INFORMATION:

• This engine crane ship by truck and extra shipping charges will apply to ship to a non-commercial address. If Residential Delivery or Liftgate Delivery is required, please select one of the choices above BEFORE adding to the cart!
• PROUDLY MADE IN THE USA!
